Circuit Diagram

(M/T)

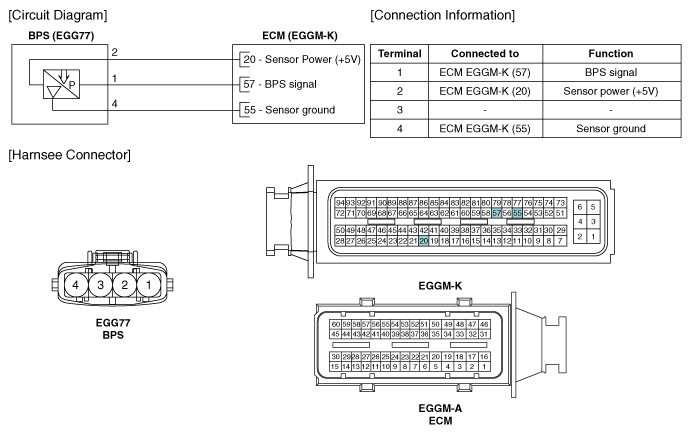

Fig 1: Boost Pressure Sensor Circuit Diagram (M/T) With Connector End Views
G10604544Courtesy of HYUNDAI MOTOR AMERICA

(A/T)

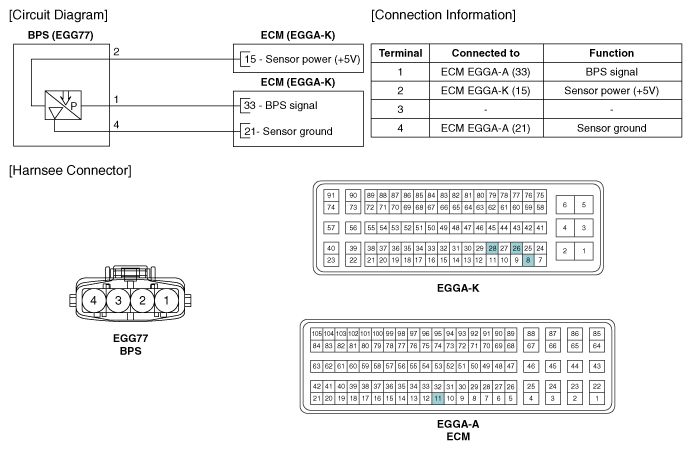

Fig 2: Boost Pressure Sensor Circuit Diagram (A/T) With Connector End Views
G10604545Courtesy of HYUNDAI MOTOR AMERICA
