Circuit Diagram

(M/T)

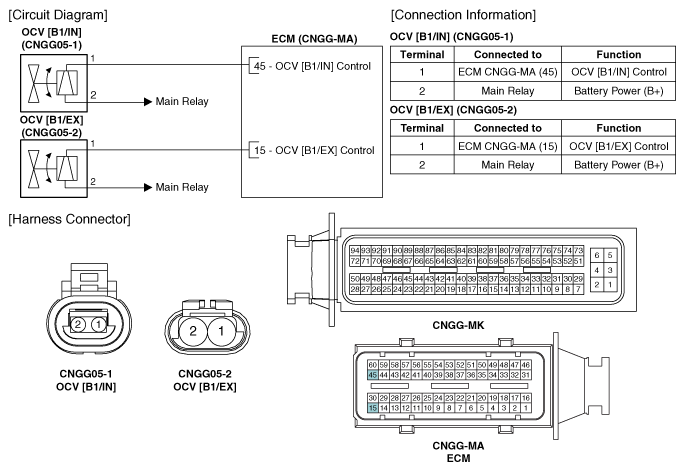

Fig 1: CVVT Oil Control Valve Circuit Diagram (M/T) With Connector End Views
G10604607Courtesy of HYUNDAI MOTOR AMERICA

(A/T)

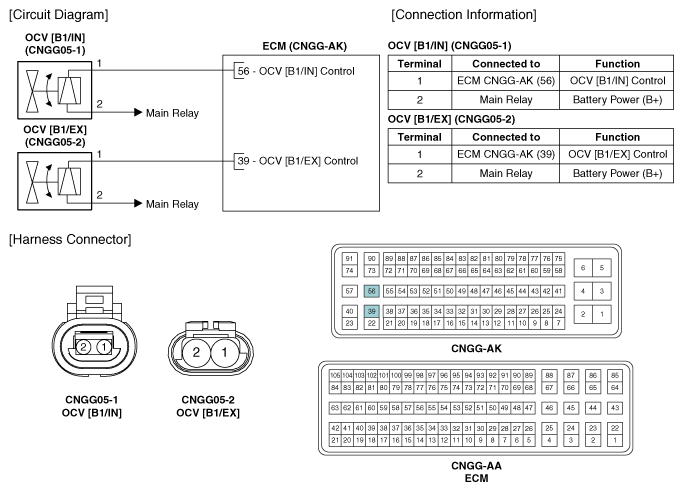

Fig 2: CVVT Oil Control Valve Circuit Diagram (A/T) With Connector End Views
G10604608Courtesy of HYUNDAI MOTOR AMERICA
