Circuit Diagram

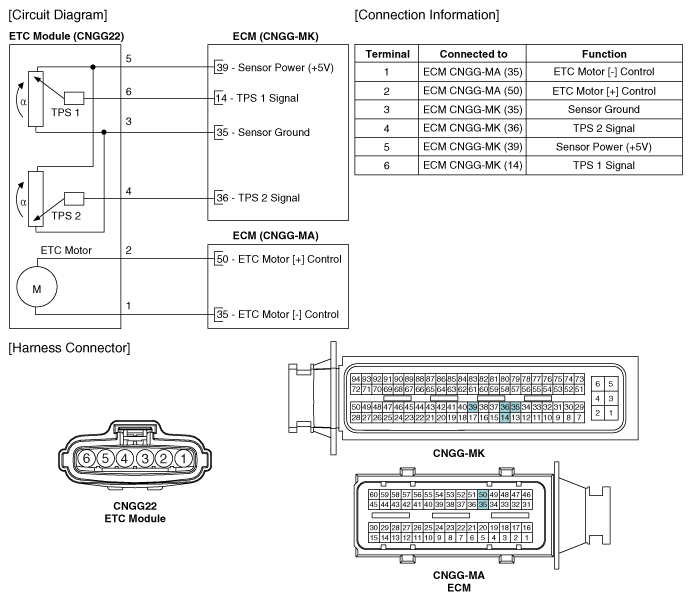

Fig 1: Electronic Throttle Control System Circuit Diagram (M/T) With Connector End Views
G10604525Courtesy of HYUNDAI MOTOR AMERICA

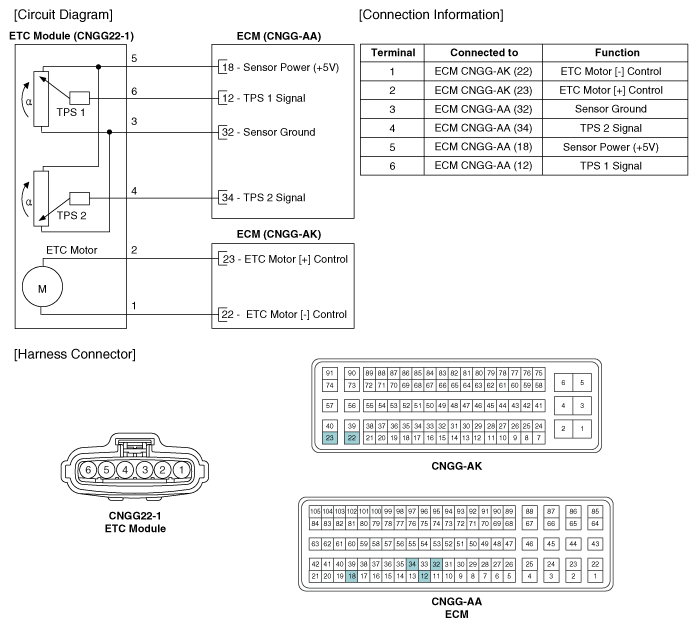

Fig 2: Electronic Throttle Control System Circuit Diagram (A/T) With Connector End Views
G10604526Courtesy of HYUNDAI MOTOR AMERICA
