Repair Procedures: Removal

  1. Turn the Ignition Switch OFF and disconnect the Battery Negative (-) Cable.
  2. Disconnect the Manifold Absolute Pressure Sensor Connector (A).
  3. Remove the Installation Bolt (B), and then remove the sensor from the surge tank.

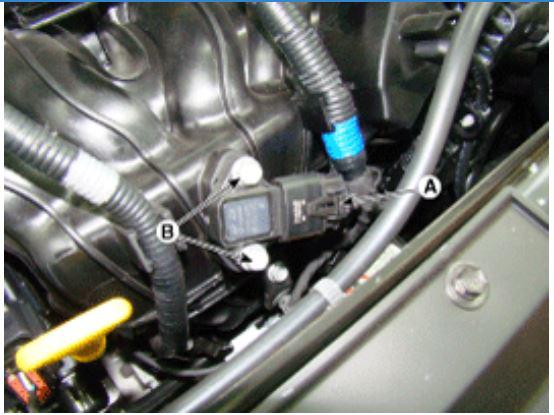

    4. Fig 1: Manifold Absolute Pressure Sensor Connector Installation Bolt
    G00561513Courtesy of HYUNDAI MOTOR AMERICA
