Circuit Diagram

(M/T)

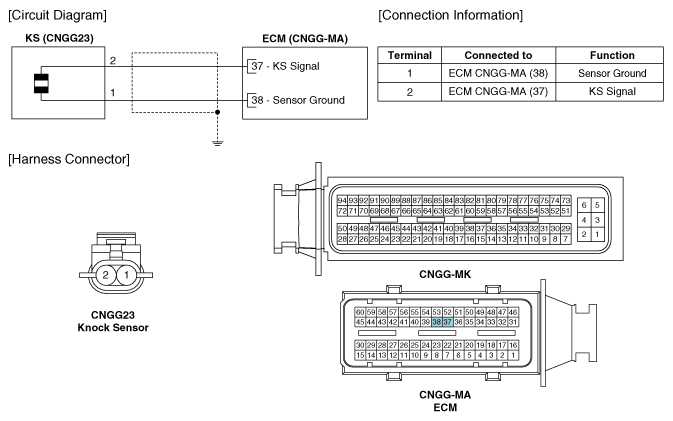

Fig 1: Knock Sensor Circuit Diagram (M/T) With Connector End Views
G10604566Courtesy of HYUNDAI MOTOR AMERICA

(A/T)

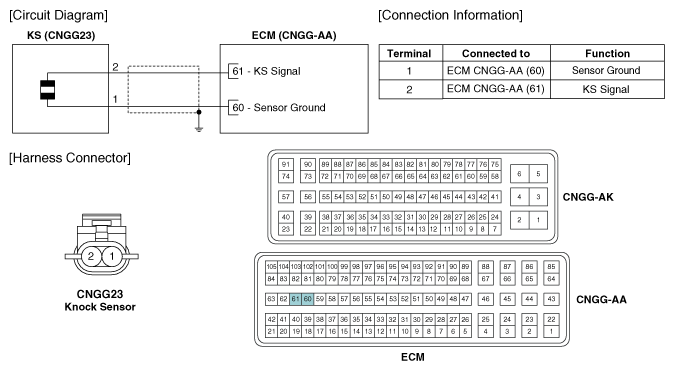

Fig 2: Knock Sensor Circuit Diagram (A/T) With Connector End Views
G10604567Courtesy of HYUNDAI MOTOR AMERICA
