Circuit Diagram

(M/T)

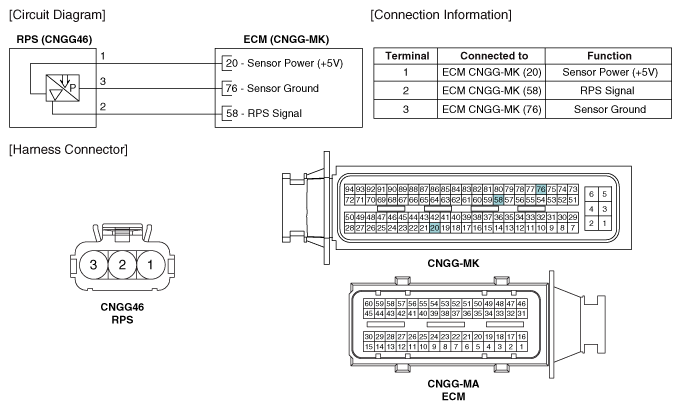

Fig 1: Rail Pressure Sensor Circuit Diagram (M/T) With Connector End Views
G10604581Courtesy of HYUNDAI MOTOR AMERICA

(A/T)

Fig 2: Rail Pressure Sensor Circuit Diagram (A/T) With Connector End Views
G10604582Courtesy of HYUNDAI MOTOR AMERICA
