Circuit Diagram

(M/T)

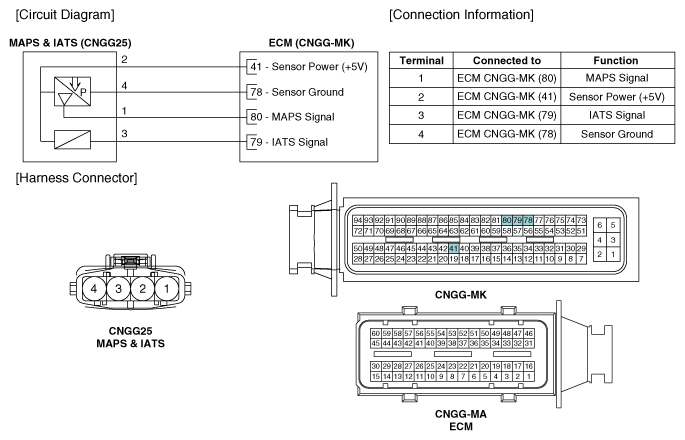

Fig 1: Manifold Absolute Pressure Sensor Circuit Diagram (M/T) With Connector End Views
G10604532Courtesy of HYUNDAI MOTOR AMERICA

(A/T)

Fig 2: Manifold Absolute Pressure Sensor Circuit Diagram (A/T) With Connector End Views
G10604533Courtesy of HYUNDAI MOTOR AMERICA
