Home › Hyundai › 2015 › Veloster Turbo, Standard Trans › Repair and Diagnosis › Transmission › Transmission Control Systems › Manual Transaxle Control System - 1.6L T-GDI › Control Cable › Components and Components Location › Components

Components and Components Location: Components

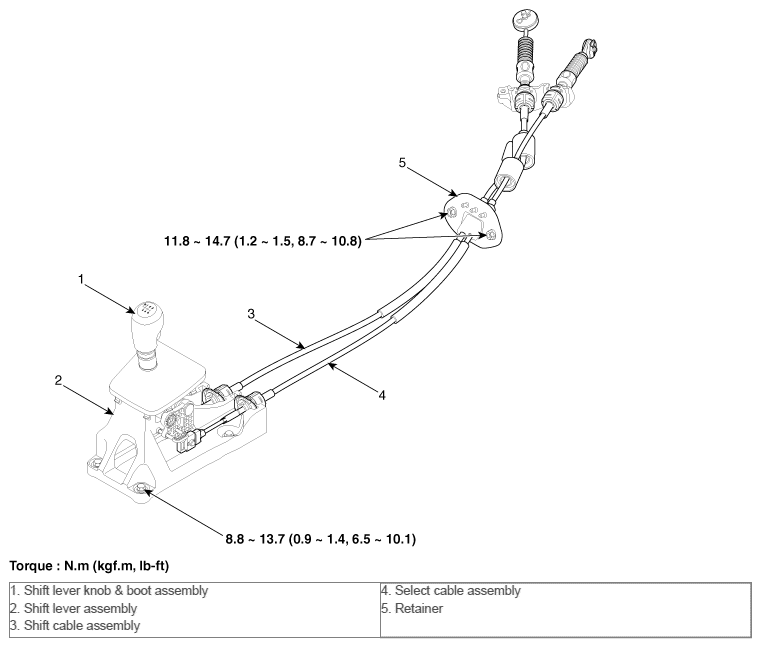

Fig 1: Control Cable Replacement Components With Torque Specification
G10604733Courtesy of HYUNDAI MOTOR AMERICA
