Home › Hyundai › 2016 › Azera Base › Repair and Diagnosis (Single Page) › Body & Frame › Seats › Front Seat › Components and Components Location › Components

Components and Components Location: Components

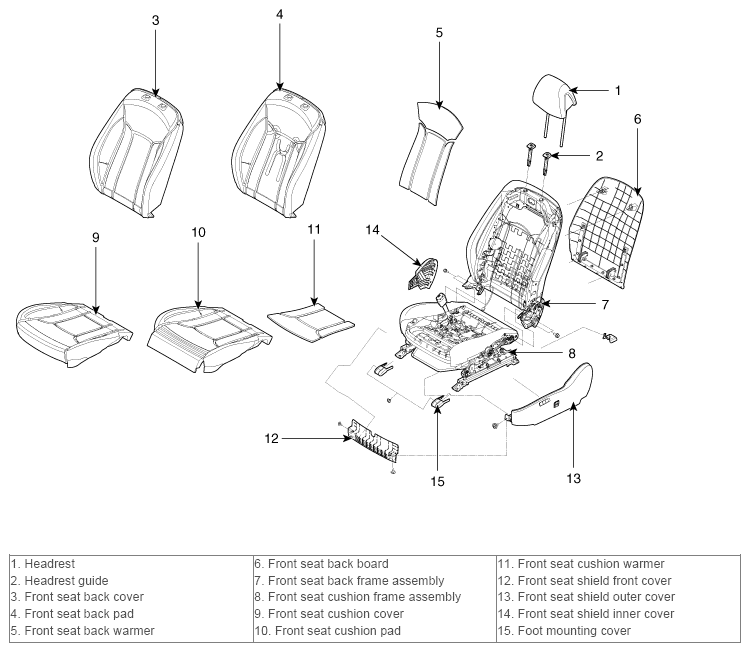

Fig 1: Front Seat Components
G10368610Courtesy of HYUNDAI MOTOR AMERICA
