Components And Components Location: Components

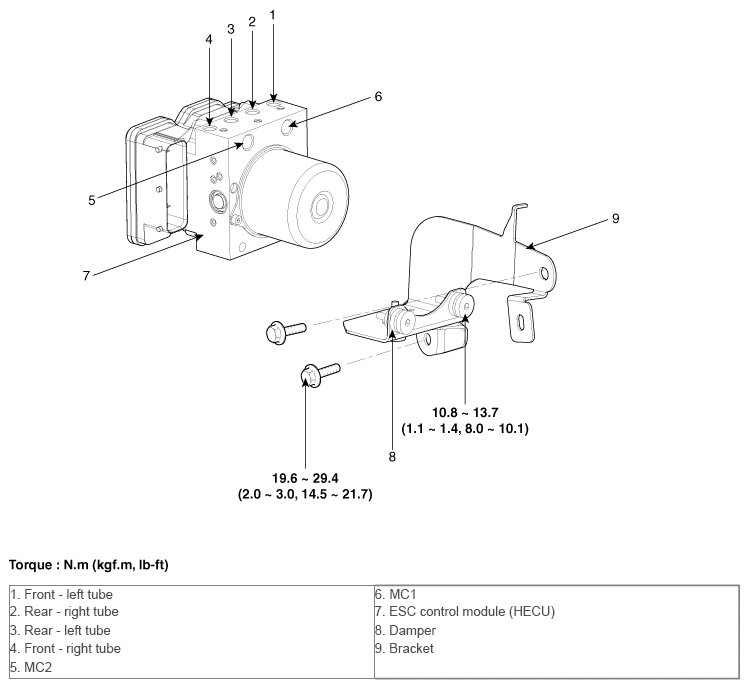

Fig 1: ESC Control Module Components With Torque Specifications
G10368244Courtesy of HYUNDAI MOTOR AMERICA
