Components and Components Location: Components

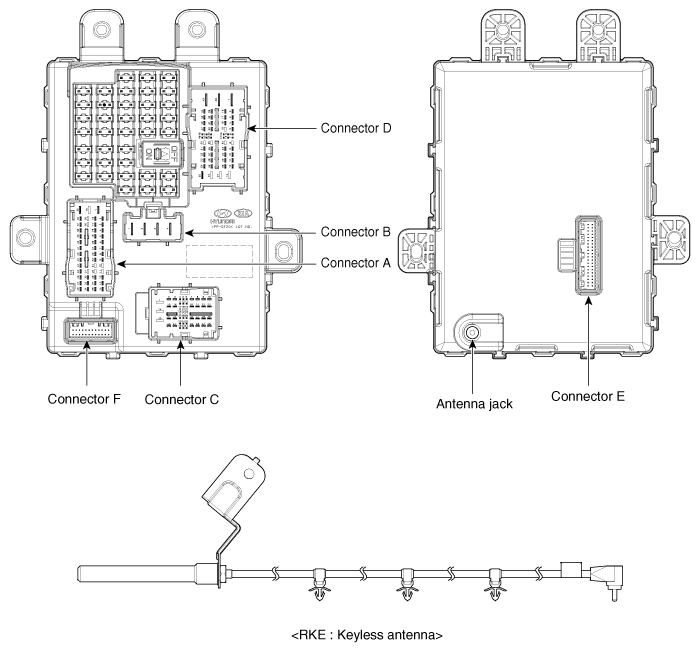

Fig 1: Body Control Module Components
G10368856Courtesy of HYUNDAI MOTOR AMERICA

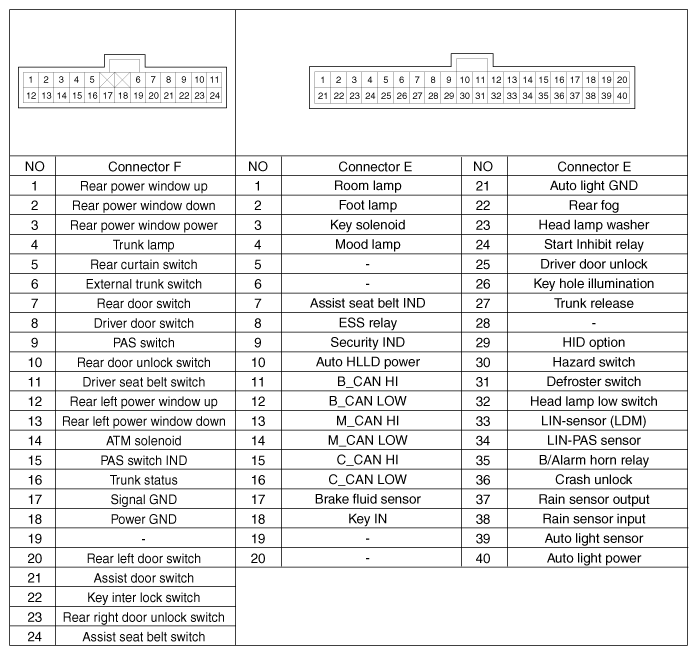

Fig 2: Body Control Module Terminals
G10368857Courtesy of HYUNDAI MOTOR AMERICA
