Circuit Diagram

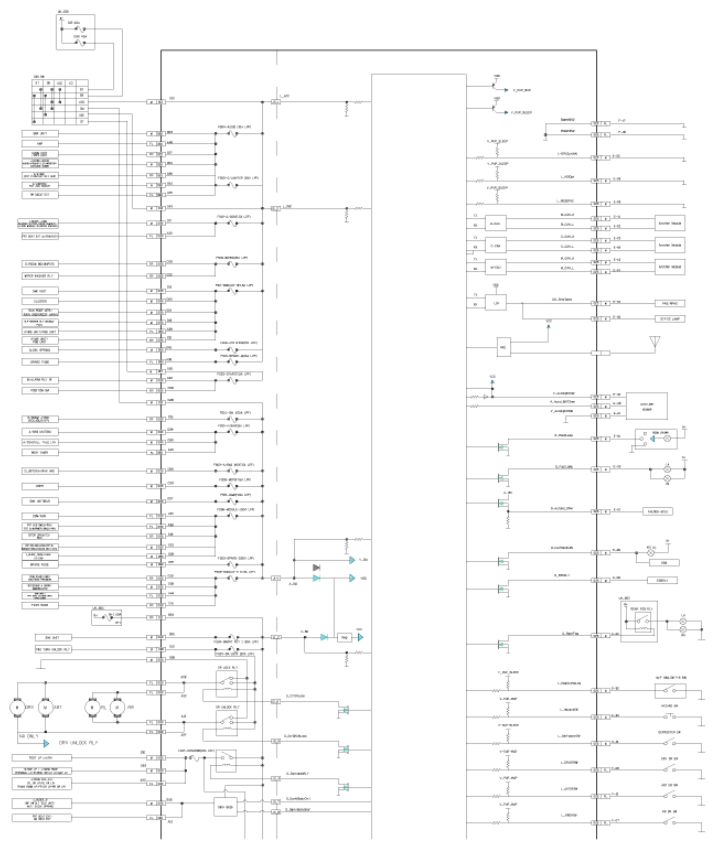

Fig 1: Vehicle - Circuit Diagram (1 Of 3)
G10368859Courtesy of HYUNDAI MOTOR AMERICA

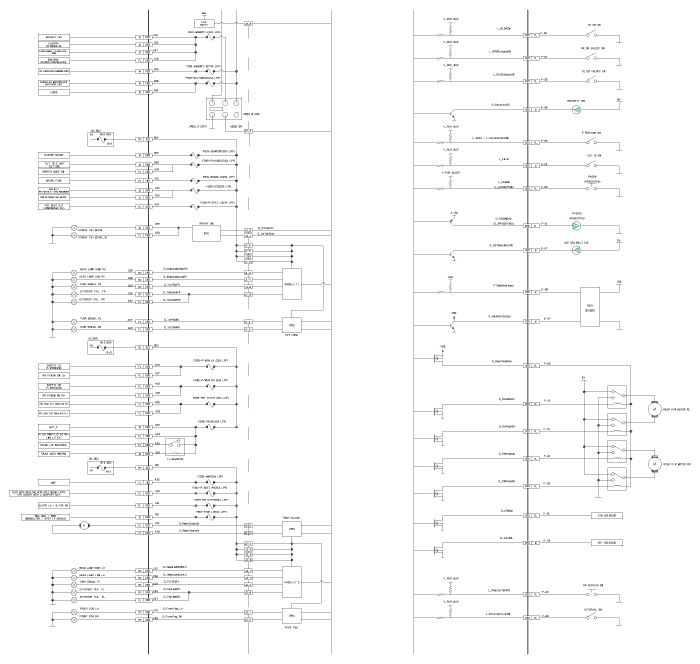

Fig 2: Vehicle - Circuit Diagram (2 Of 3)
G10368860Courtesy of HYUNDAI MOTOR AMERICA

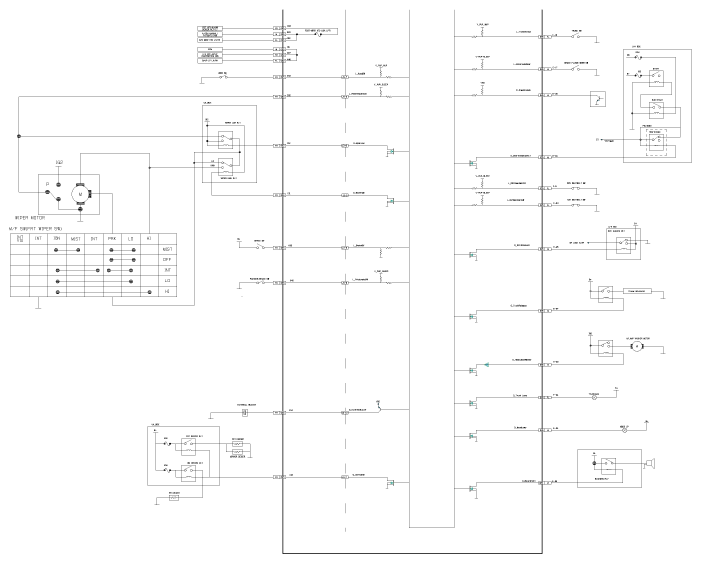

Fig 3: Vehicle - Circuit Diagram (3 Of 3)
G10368861Courtesy of HYUNDAI MOTOR AMERICA
