Repair procedures: Inspection

The body control module can diagnose by using the GDS more quickly.
The BCM communicates with the GDS and then reads the input/output value and drives the actuator.
To diagnose the SWRC function, select the menu of model and body control module

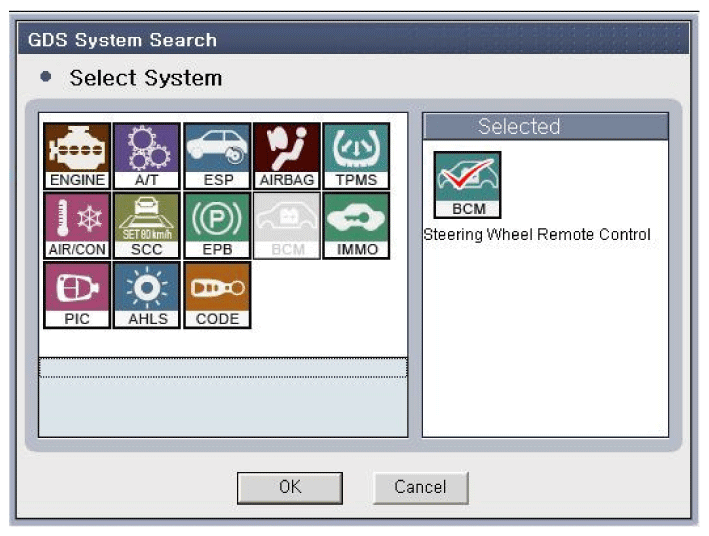

Fig 1: Display - GDS System Search Screen
Courtesy of HYUNDAI MOTOR AMERICA
To consult the present input/output value of SWRC, "Current DATA".

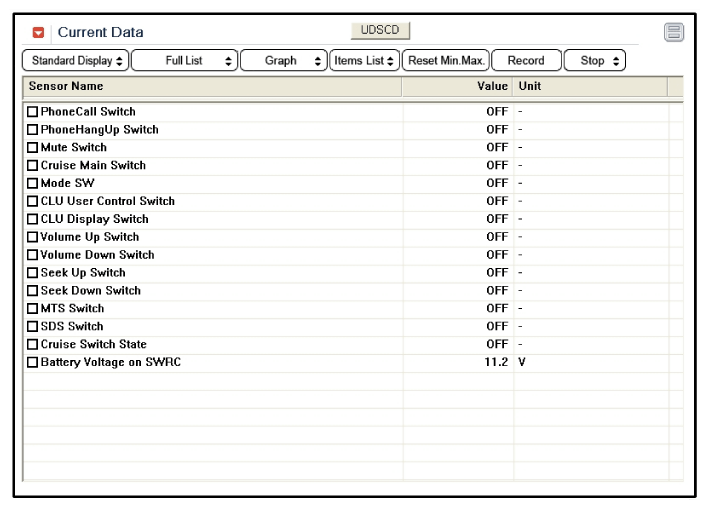

Fig 2: Display - Mode SW Current Data Screen

Courtesy of HYUNDAI MOTOR AMERICA
