Smart Key System
›
Components and Components Location
›
Component Location (1)
Component Location (1)

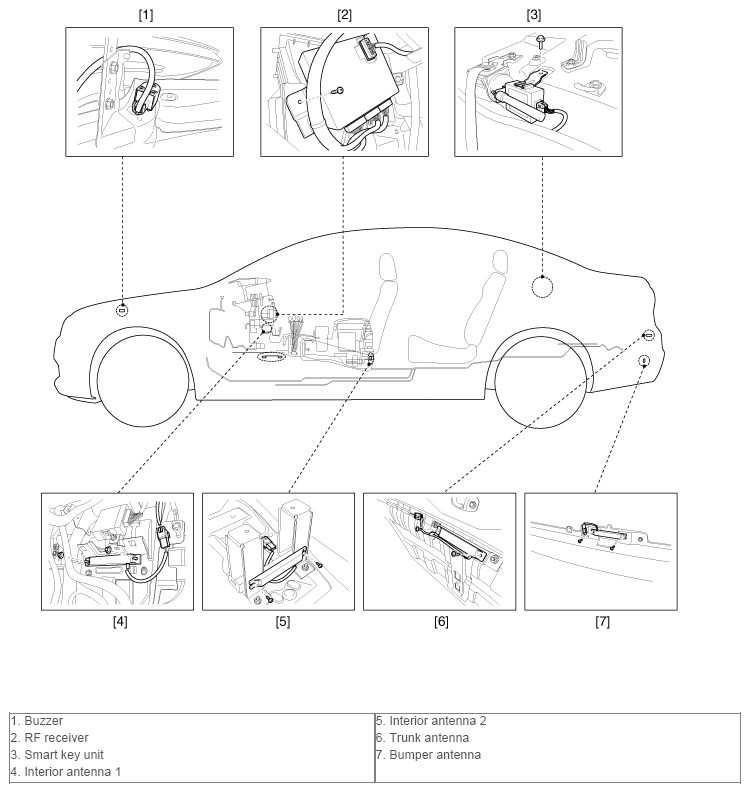

Fig 1: Body Electrical System Component Location (1)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
