Home › Hyundai › 2016 › Azera Base › Repair and Diagnosis › Body & Frame › Exterior/Interior Trim › Floor Console › Components and Components Location › Components

Components and Components Location: Components

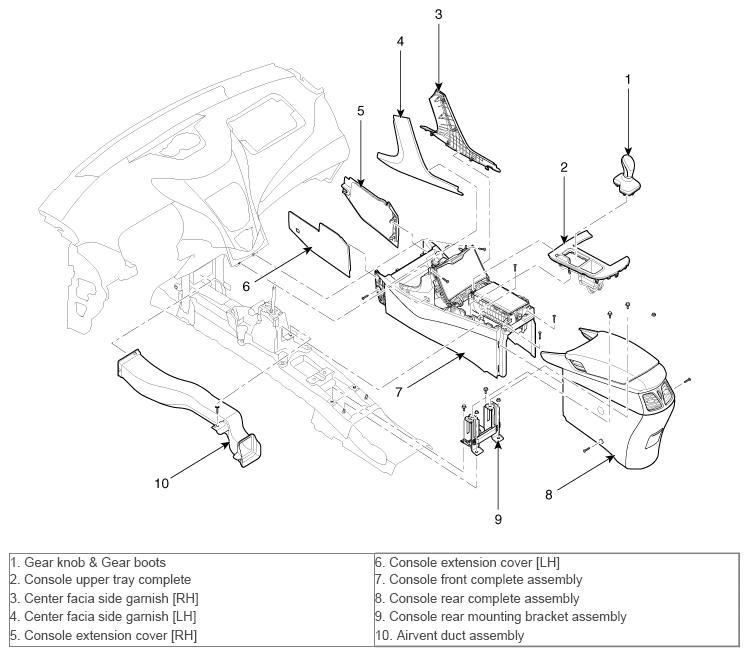

Fig 1: Floor Console Components And Locations
G10368456Courtesy of HYUNDAI MOTOR AMERICA
