Home › Hyundai › 2016 › Azera Base › Repair and Diagnosis › Body & Frame › Mirrors › Power Door Mirrors › Power Out Side Mirror Switch › Components and Components Location › Component

Components and Components Location: Component

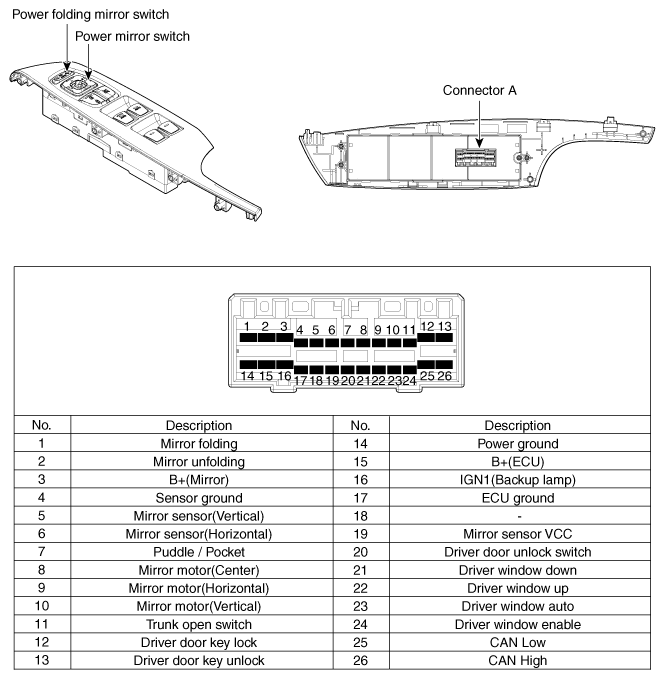

Fig 1: Power Out Side Mirror Switch Terminal Identification
G10369033Courtesy of HYUNDAI MOTOR AMERICA
