Component Inspection

■ Wheel speed sensor circuit check

1. Lift the vehicle.
2. IG "ON".
3. Turn the wheel by hand.
4. Measure waveform between signal terminal of the wheel speed sensor harness connector and chassis ground with oscilloscope.

   Specification:  High: 1.18~1.68V, Low: 0.59~0.84V

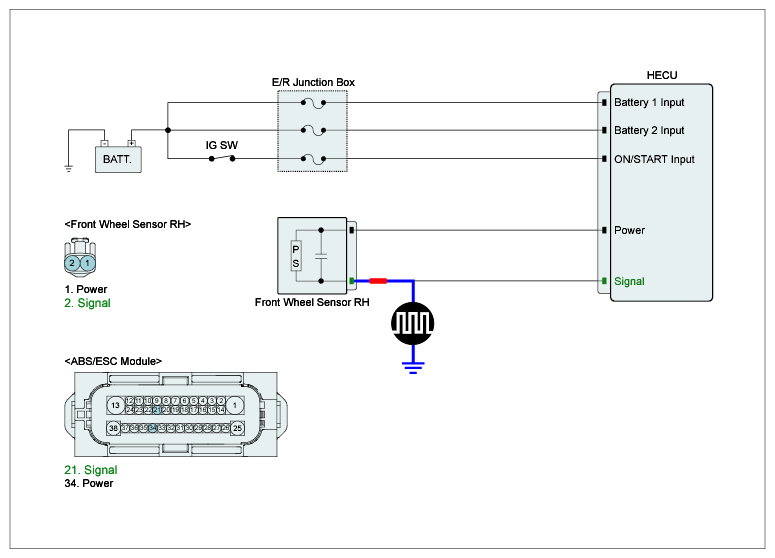

   Fig 1: Measuring Waveform Between Signal Terminal Of Wheel Speed Sensor Harness Connector And Chassis Ground

   Courtesy of HYUNDAI MOTOR AMERICA
5. Is the measured waveform within specifications?

   YES

   • Fault is intermittent caused by poor connection in wheel speed sensor harness (FR). Go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Substitute with a known-good Wheel speed sensor and check for proper operation. If problem is corrected, replace Wheel speed sensor and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
