Home › Hyundai › 2016 › Azera Base › Repair and Diagnosis › Brakes › Traction Control › Electronic Stability Control (ESC) System › Components and Components Location › Components

Components and Components Location: Components

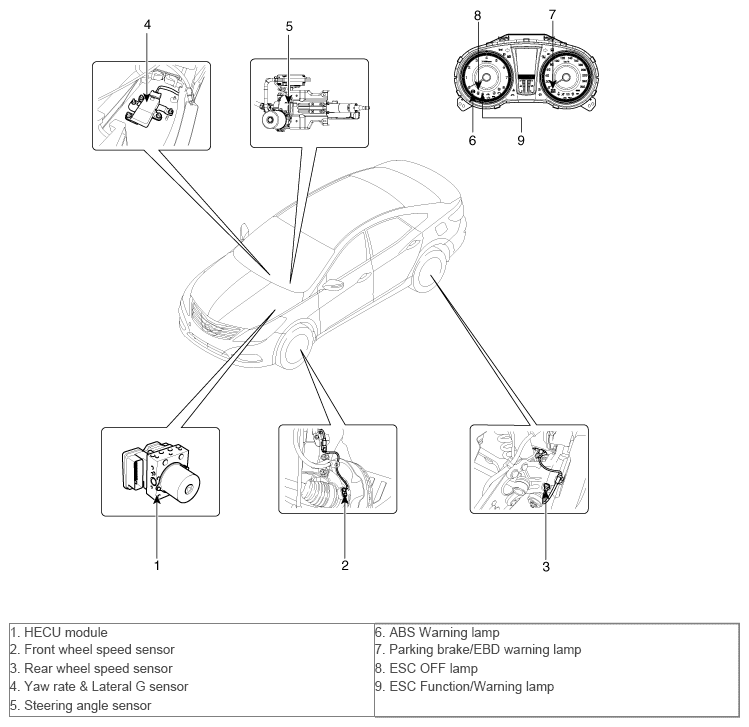

Fig 1: Electronic Stability Control (ESC) System Components
G10368220Courtesy of HYUNDAI MOTOR AMERICA
