Home › Hyundai › 2016 › Azera Base › Repair and Diagnosis › Drivelines & Axles › Axle Shafts › Driveshaft Assembly › BJ Boot › Components and Components Location › Components

Components and Components Location: Components

[LH]

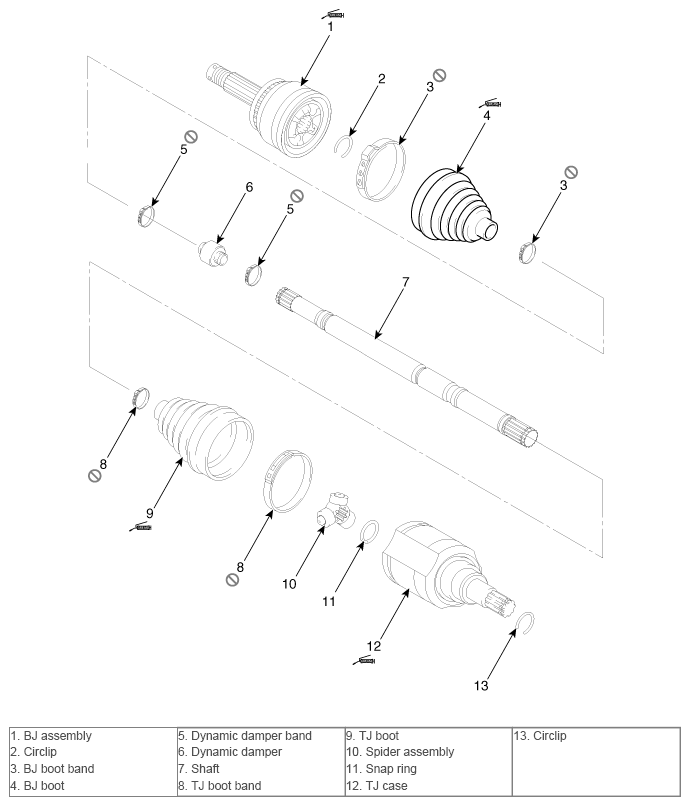

Fig 1: BJ Boot Components (LH)
G10367809Courtesy of HYUNDAI MOTOR AMERICA

[RH]

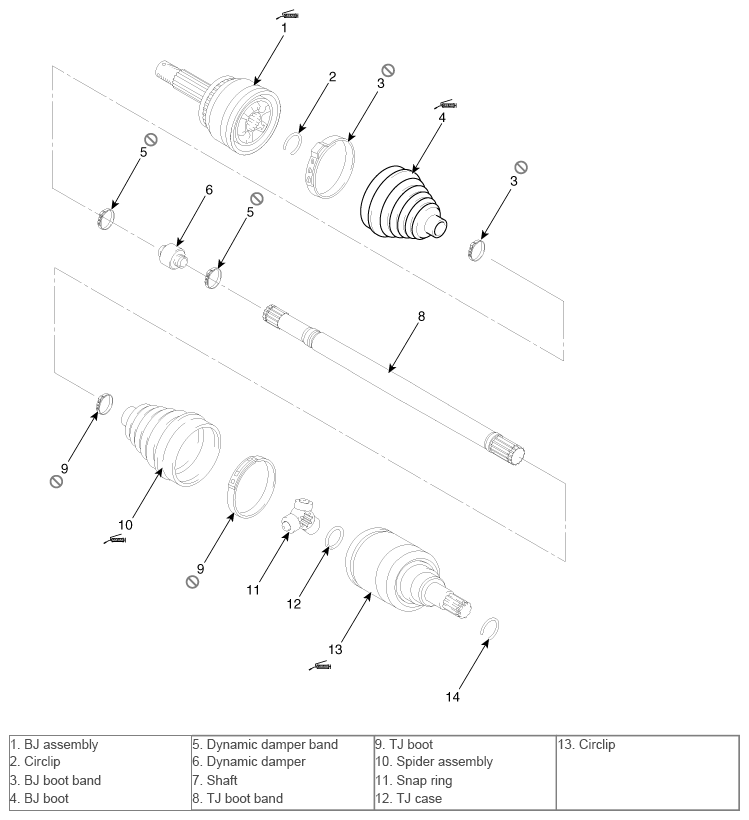

Fig 2: BJ Boot Components (RH)
G10367810Courtesy of HYUNDAI MOTOR AMERICA
