Components and Components Location: Components

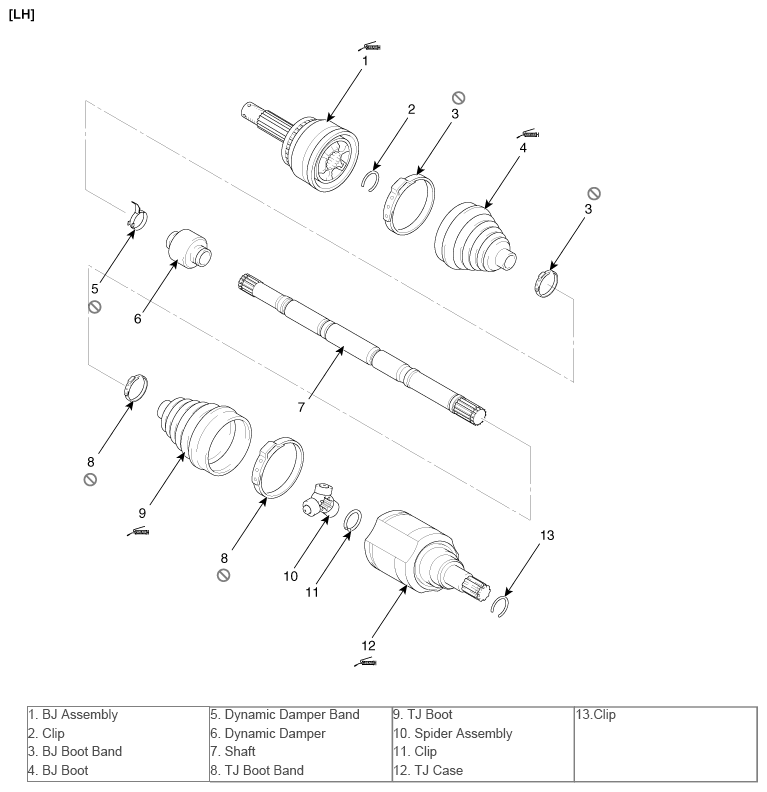

Fig 1: Front Driveshaft Components (LH)
G10367778Courtesy of HYUNDAI MOTOR AMERICA

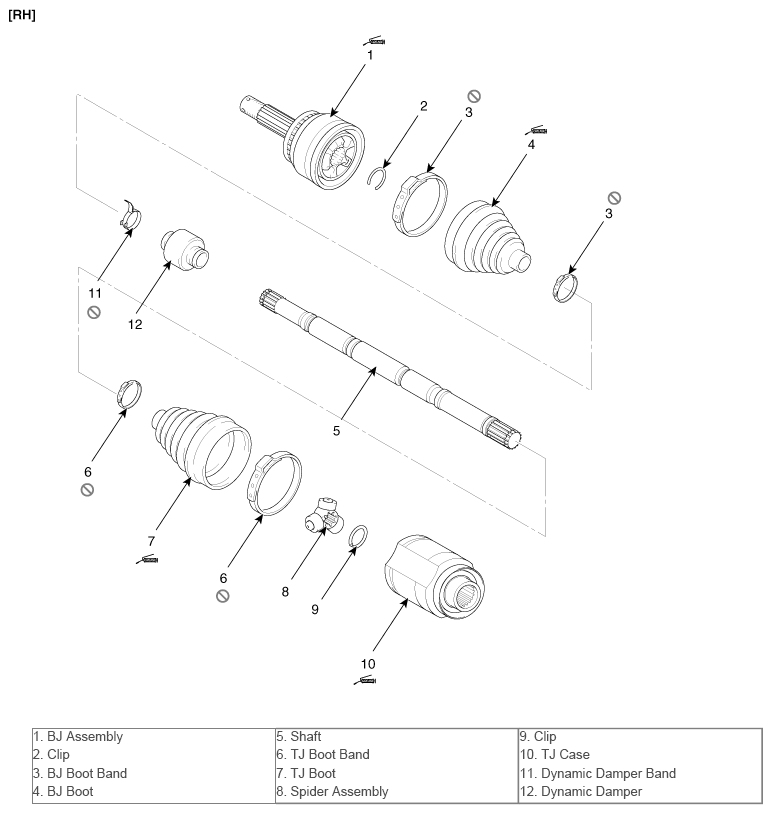

Fig 2: Front Driveshaft Components (RH)
G10367779Courtesy of HYUNDAI MOTOR AMERICA
