Components and Components Location: Components

[LH]

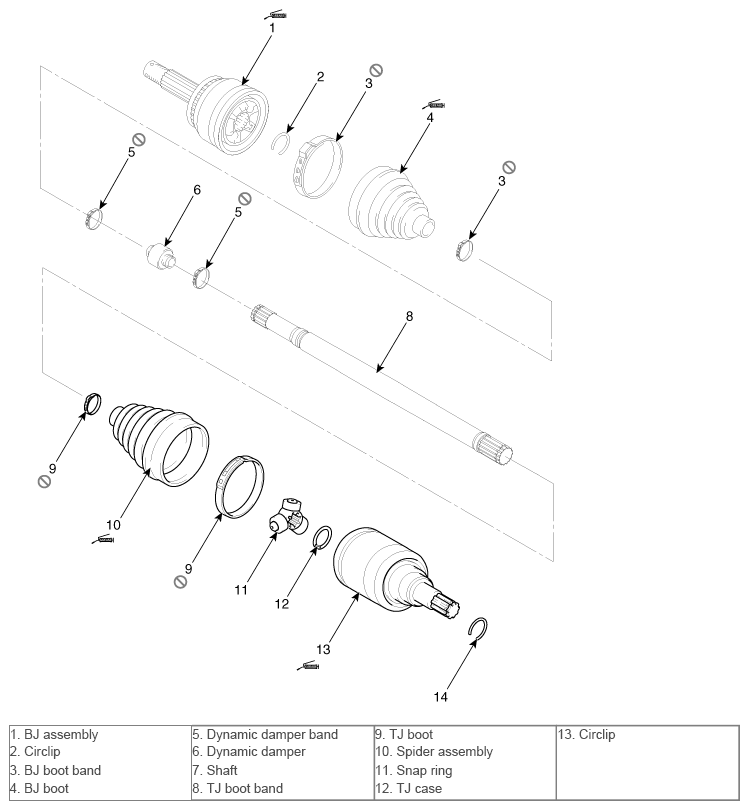

Fig 1: TJ Joint Components (LH)
G10367790Courtesy of HYUNDAI MOTOR AMERICA

[RH]

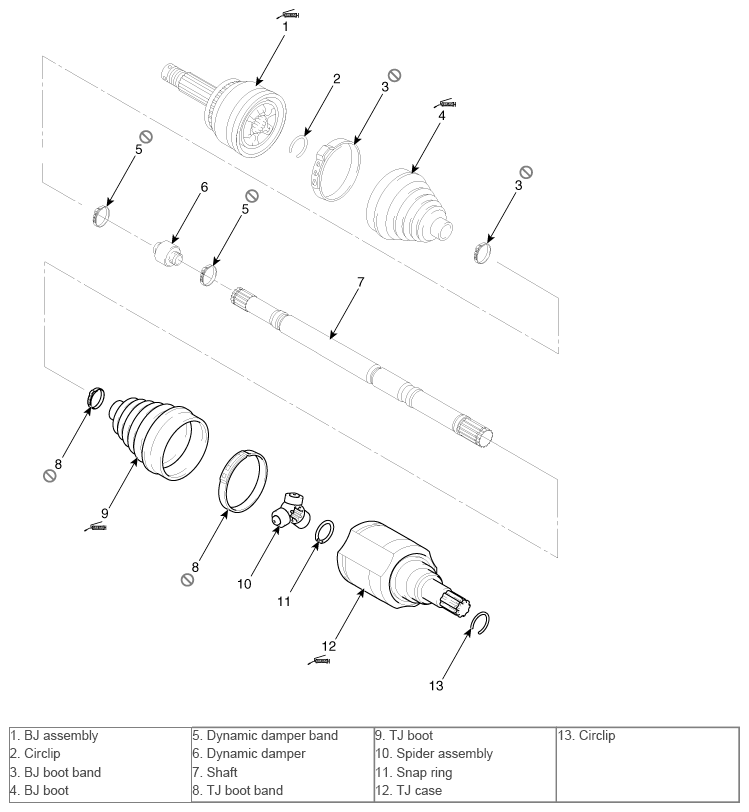

Fig 2: TJ Joint Components (RH)
G10367791Courtesy of HYUNDAI MOTOR AMERICA
