Repair procedures: Replacement

CAUTION:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Take care not to scratch the body surface.
  • Put on gloves to protect your hands.
  1. Remove the front seat assembly.

    (Refer to "FRONT SEAT ASSEMBLY ")

  2. Remove the console rear complete & console front complete assembly.

    (Refer to "FLOOR CONSOLE ASSEMBLY ")

  3. Remove the front pillar trim.

    (Refer to "FRONT PILLAR TRIM ")

  4. Remove the cowl side trim.

    (Refer to "COWL SIDE TRIM ")

  5. Remove the instrument cluster.
  6. Remove the steering column shroud panel.

    (Refer to "STEERING COLUMN SHROUD PANEL ")

  7. Remove the AVN head unit.
  8. Remove the glove box housing.

    (Refer to "GLOVE BOX HOUSING ")

  9. Disconnect the steering column connectors.
  10. Down the steering column after loosening the mounting bolts.
  11. After loosening the mounting screws, then remove the crash pad garnish [RH] (A).
    Fig 1: Crash Pad Garnish (RH)
    G10368516Courtesy of HYUNDAI MOTOR AMERICA
  12. Disconnect the connector (A).
    Fig 2: Connector
    G10368517Courtesy of HYUNDAI MOTOR AMERICA
  13. After loosening the mounting screws, then remove the crash pad main lower panel (A).
    Fig 3: Crash Pad Main Lower Panel And Mounting Screws
    G10368518Courtesy of HYUNDAI MOTOR AMERICA
  14. After loosening the mounting screw, then remove the air duct assembly (A).
    Fig 4: Air Duct Assembly
    G10368519Courtesy of HYUNDAI MOTOR AMERICA
  15. Using a screwdriver or remover, remove the center speaker grille (A).
    Fig 5: Center Speaker Grille
    G10368520Courtesy of HYUNDAI MOTOR AMERICA
  16. After loosening the mounting screws, then remove the center speaker assembly (A).
    Fig 6: Center Speaker Assembly
    G10368521Courtesy of HYUNDAI MOTOR AMERICA
  17. Disconnect the center speaker connectors (A).
    Fig 7: Center Speaker Connectors
    G10368522Courtesy of HYUNDAI MOTOR AMERICA
  18. Disconnect the start/stop button connector (A).
    Fig 8: Start/Stop Button Connector
    G10368523Courtesy of HYUNDAI MOTOR AMERICA
  19. After loosening the mounting screws, then remove the cubis assembly (A).
  20. Disconnect the connector (B).
    Fig 9: Cubis Assembly And Connector
    G10368524Courtesy of HYUNDAI MOTOR AMERICA
  21. After loosening the mounting screws, then remove the joint block (A).
    Fig 10: Joint Block
    G10368525Courtesy of HYUNDAI MOTOR AMERICA
  22. Disconnect the passenger's airbag connector (A).
  23. Loosen the mounting bolts.
    Fig 11: Passenger Airbag Connector
    G10368526Courtesy of HYUNDAI MOTOR AMERICA
  24. Using a screwdriver or remover, remove the photo sensor (A).
  25. Disconnect the photo sensor connector (B).
    Fig 12: Photo Sensor
    G10368527Courtesy of HYUNDAI MOTOR AMERICA
  26. Disconnect the passenger's airbag connectors (A).
    Fig 13: Passenger Airbag Connectors
    G10368528Courtesy of HYUNDAI MOTOR AMERICA
  27. Disconnect the speaker [LH, RH] connectors (A).
    Fig 14: Speaker Connectors
    G10368529Courtesy of HYUNDAI MOTOR AMERICA

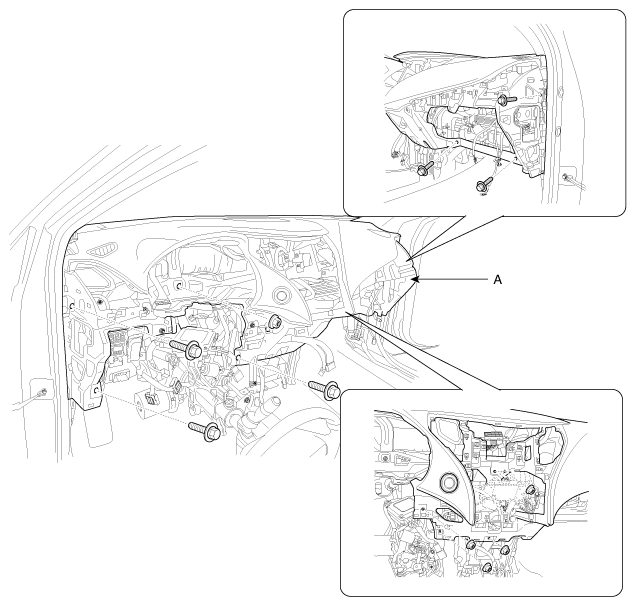

  28. After loosening the mounting bolts and nuts, then remove the main crash pad assembly (A).
    Fig 15: Main Crash Pad Assembly Mounting Bolts And Nuts
    G10368530Courtesy of HYUNDAI MOTOR AMERICA
  29. Installation is the reverse of removal.
    NOTE:
    • Make sure the crash pad fits onto the guide pins correctly.
    • Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
    • Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
    • Enter the anti-theft code for the radio, then enter the customer's radio station presets.
