Component and Component Location: Component

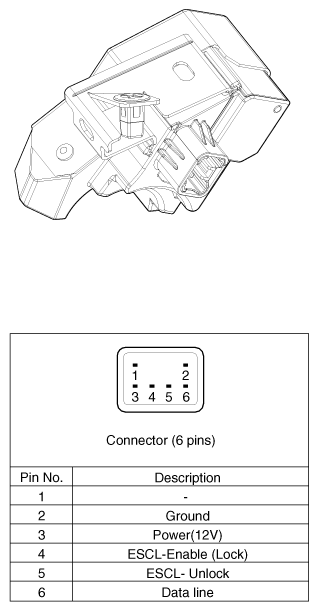

Fig 1: Electronic Steering Column Lock (ESCL) Components
G10369305Courtesy of HYUNDAI MOTOR AMERICA
