Emission Control System - General Information
›
Components and Components Location
›
Components Location
Components Location

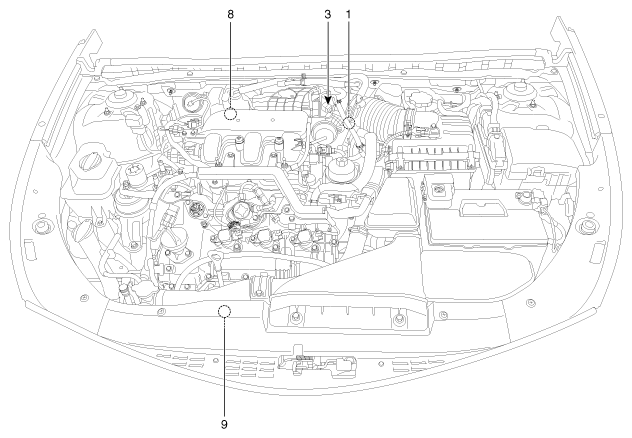

Fig 1: Engine Compartment Components Location (1 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA

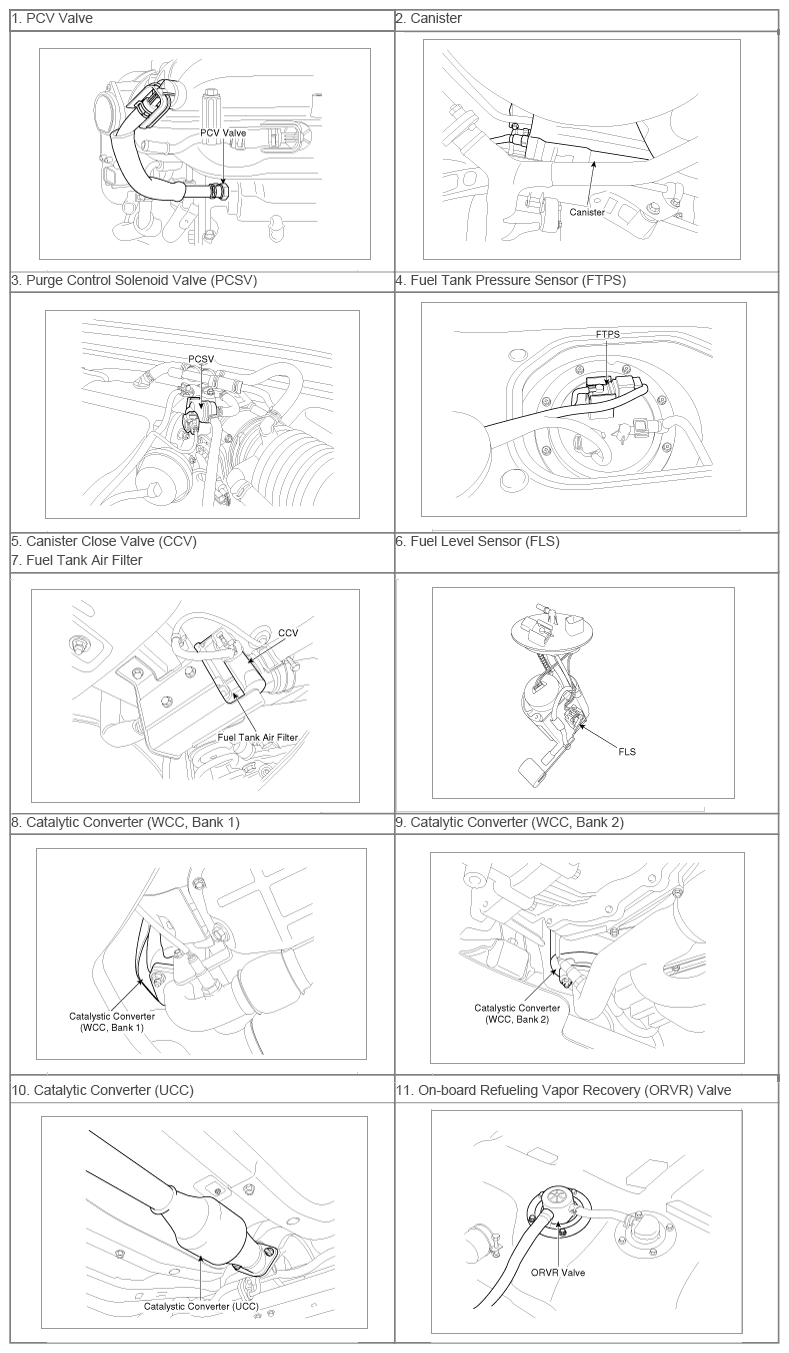

Fig 2: Engine Compartment Components Location (2 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA

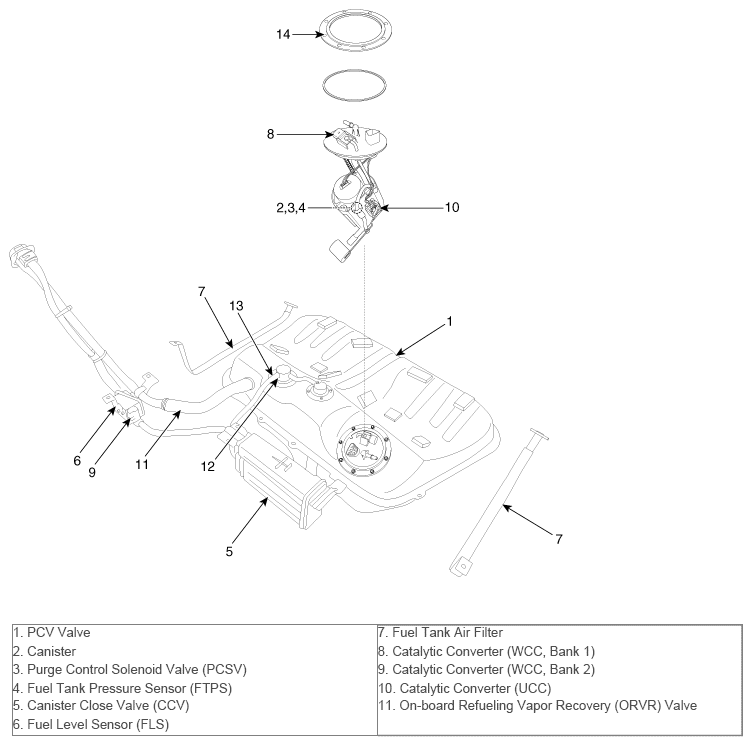

Fig 3: Engine Compartment Components Location (3 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
