Components and Components Location: Components

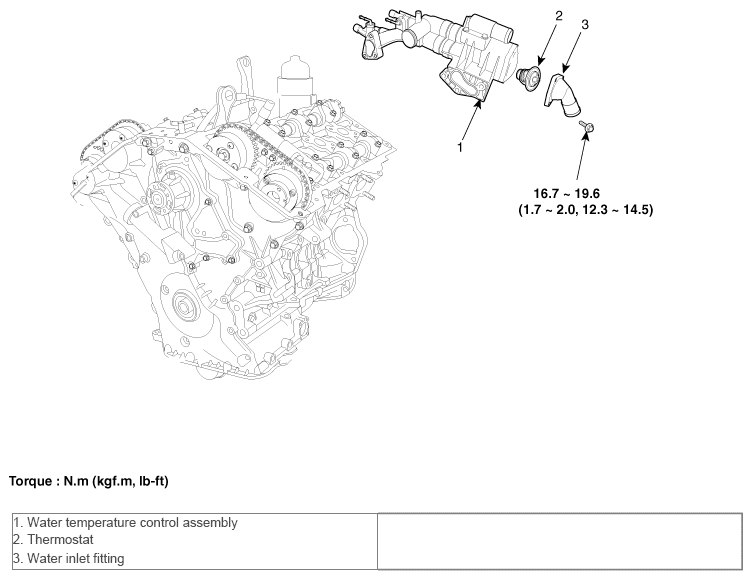

Fig 1: Thermostat Components With Torque Specification
G10367111Courtesy of HYUNDAI MOTOR AMERICA
