Components and Components Location: Components

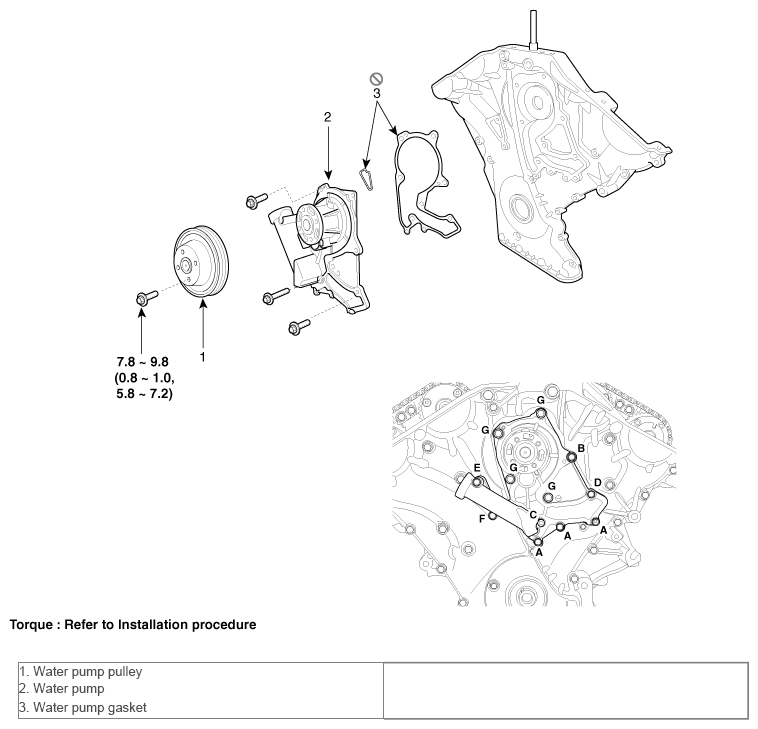

Fig 1: Water Pump Components With Torque Specification
G10367103Courtesy of HYUNDAI MOTOR AMERICA
