Components and Components Location: Components

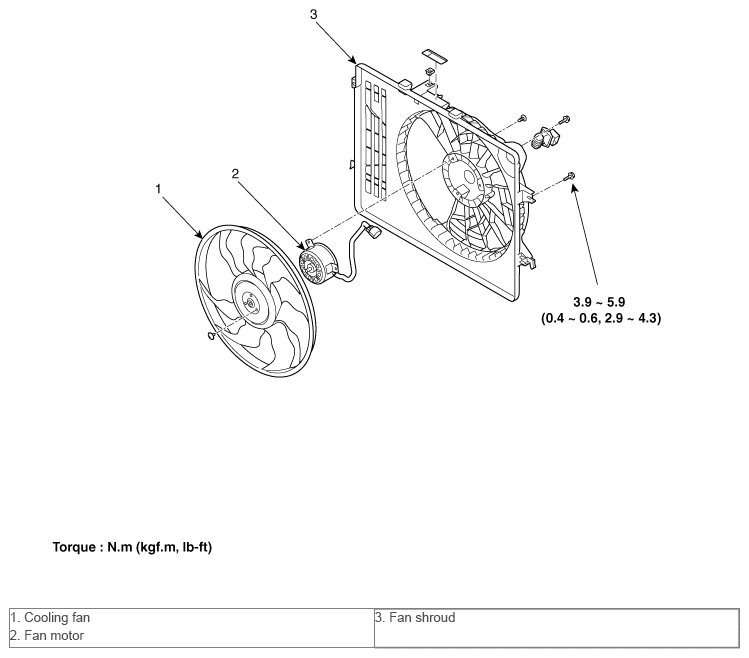

Fig 1: Cooling Fan Components With Torque Specification
G10367088Courtesy of HYUNDAI MOTOR AMERICA
