Home › Hyundai › 2016 › Azera Base › Repair and Diagnosis › Engine Mechanical › Cooling System (Mechanical) › Engine Cooling System › Reservoir Tank › Components and Components Location › Components

Components and Components Location: Components

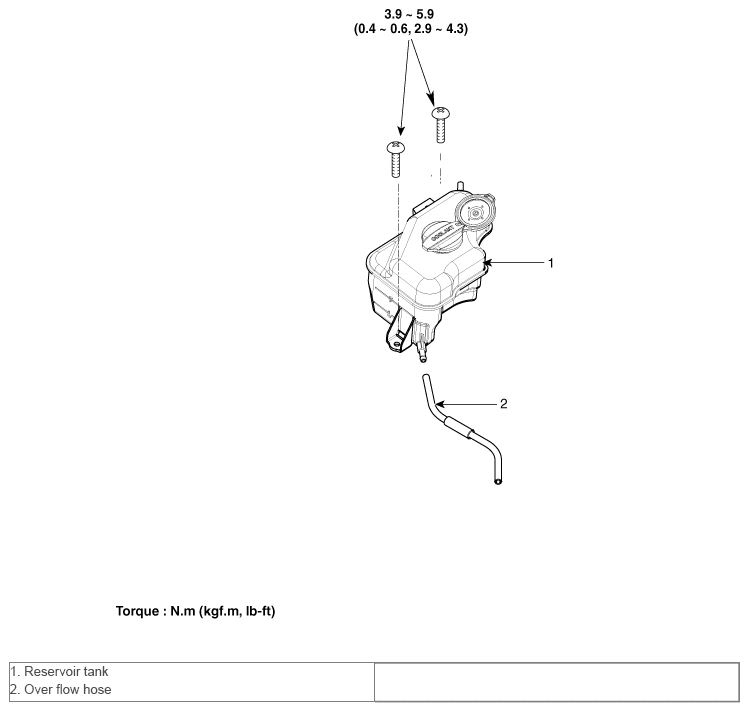

Fig 1: Reservoir Tank Components With Torque Specification
G10367095Courtesy of HYUNDAI MOTOR AMERICA
