Home › Hyundai › 2016 › Azera Base › Repair and Diagnosis › Engine Mechanical › Lubrication System › Oil Pressure Switch › Components and Components Location › Components

Components and Components Location: Components

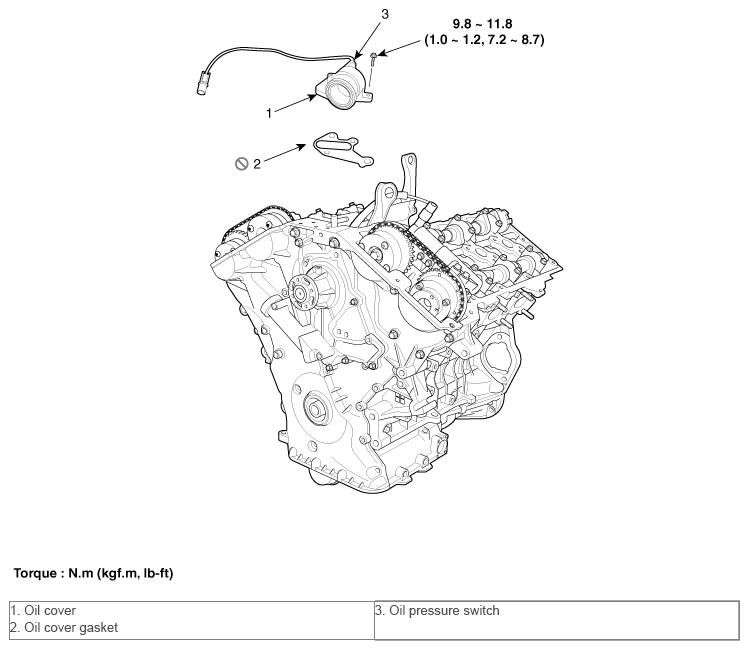

Fig 1: Oil Pressure Switch Components With Torque Specifications
G10367138Courtesy of HYUNDAI MOTOR AMERICA
