Home › Hyundai › 2016 › Azera Base › Repair and Diagnosis › Engine Mechanical › Mechanical › Cylinder Block › Rear Oil Seal › Components And Components Location › Components

Components And Components Location: Components

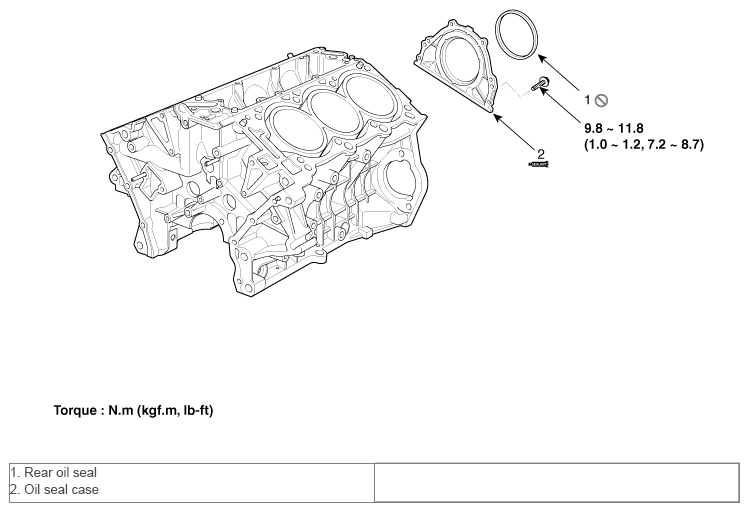

Fig 1: Rear Oil Seal Components With Torque Specification
G10367029Courtesy of HYUNDAI MOTOR AMERICA
