Components and Components Location: Components

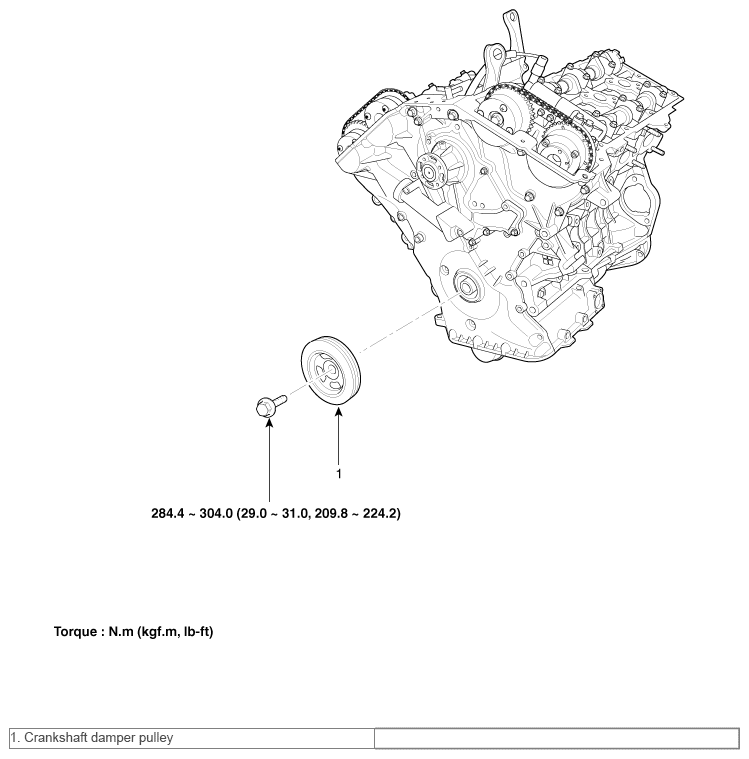

Fig 1: Crankshaft Damper Pulley Bolts With Torque Specification
G10366874Courtesy of HYUNDAI MOTOR AMERICA
