Components and Components Location: Components

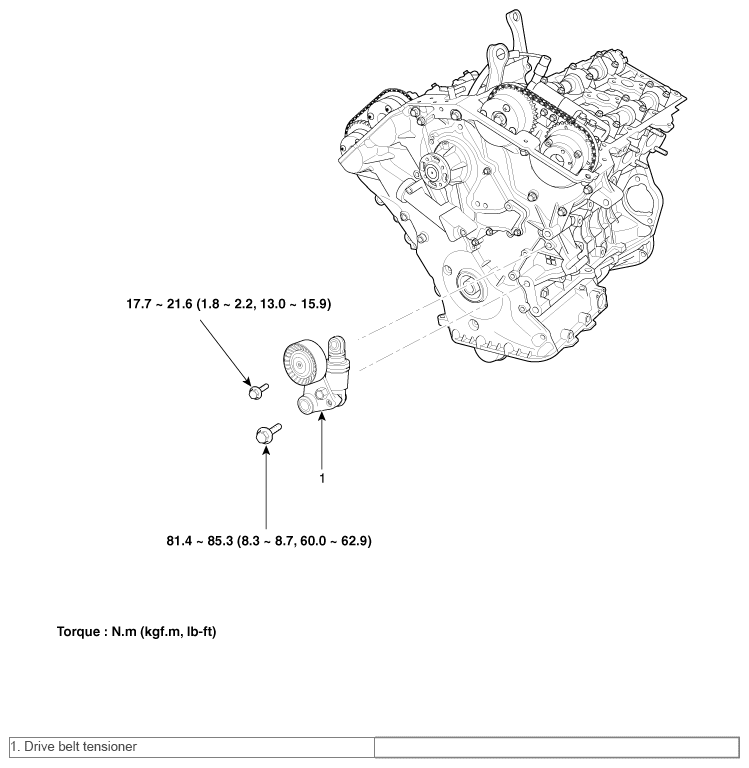

Fig 1: Drive Belt Tensioner Components With Torque Specification
G10366872Courtesy of HYUNDAI MOTOR AMERICA
