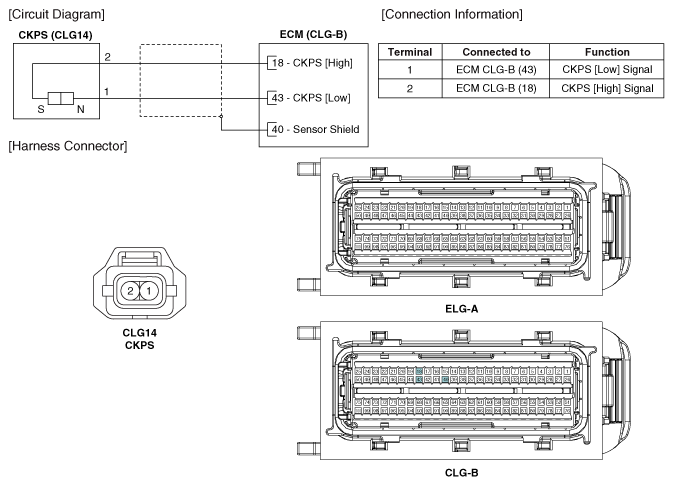

Home › Hyundai › 2016 › Azera Base › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System › Crankshaft Position Sensor (CKPS) › Schematic Diagrams › Circuit Diagram
