Monitor GDS Data

Connect GDS to Data Link Connector (DLC).
IG "ON".
Select "DTC" button, and then Press "DTC Status" to check DTC's information from the DTCs menu.
Read "DTC Status" parameter.

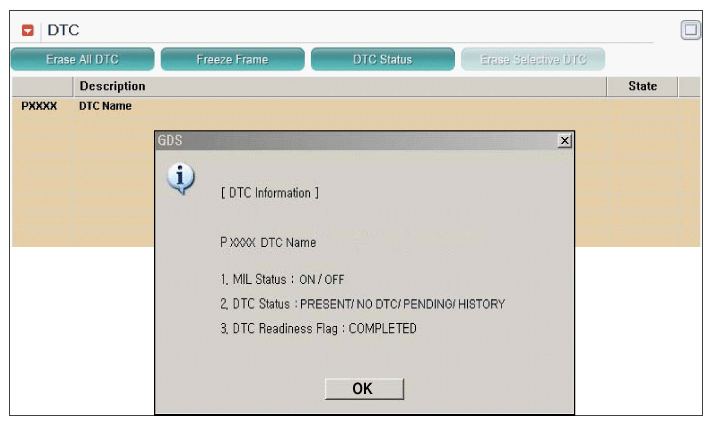

Fig 1: Screen Display - DTC Information
Courtesy of HYUNDAI MOTOR AMERICA
Is parameter displayed "Present fault"?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Fault is intermittent, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
