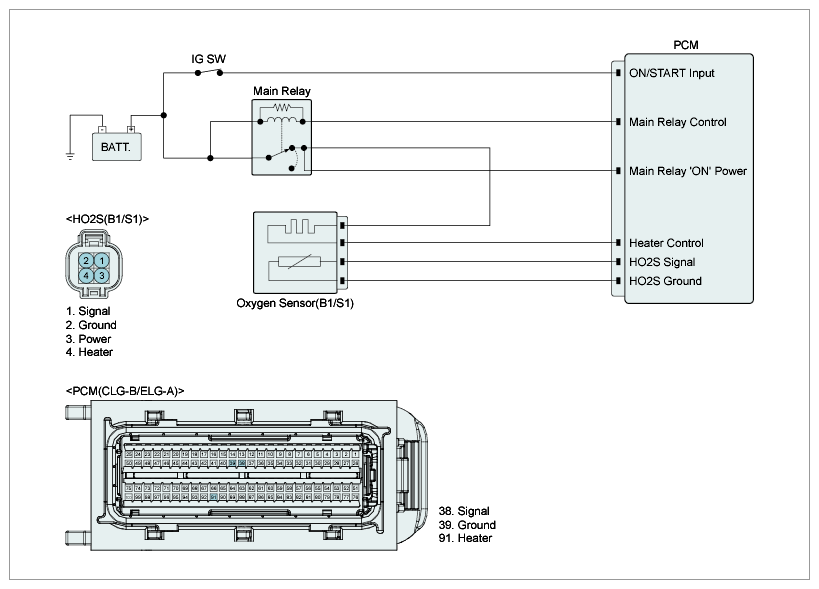

Home › Hyundai › 2016 › Azera Base › Repair and Diagnosis › Engine Performance › System › Engine Control System Diagnosis (1 Of 3) › DTC P0134: O2 Sensor Circuit No Activity Detected (Bank 1 Sensor 1) › General Information › Diagnostic Circuit Diagram
