Signal Waveform & Data

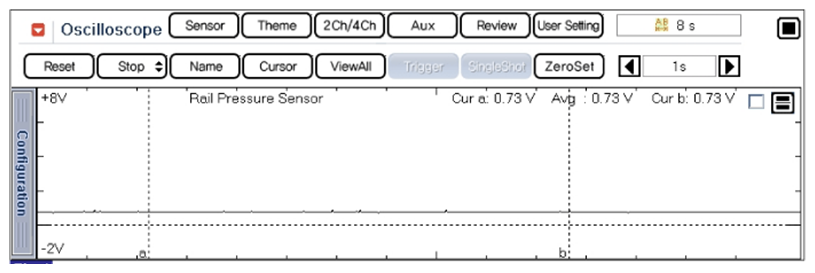

Fig 1: Screen Display - Normal Waveform Of Rail Pressure Sensor At Idle
G10373103Courtesy of HYUNDAI MOTOR AMERICA

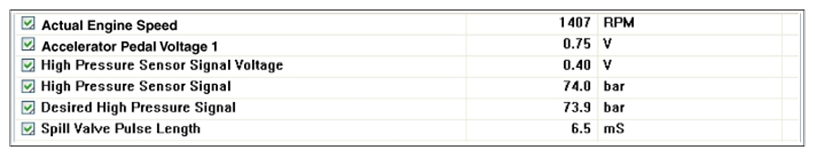

Fig 2: Screen Display - Actual Engine Speed
G10373104Courtesy of HYUNDAI MOTOR AMERICA

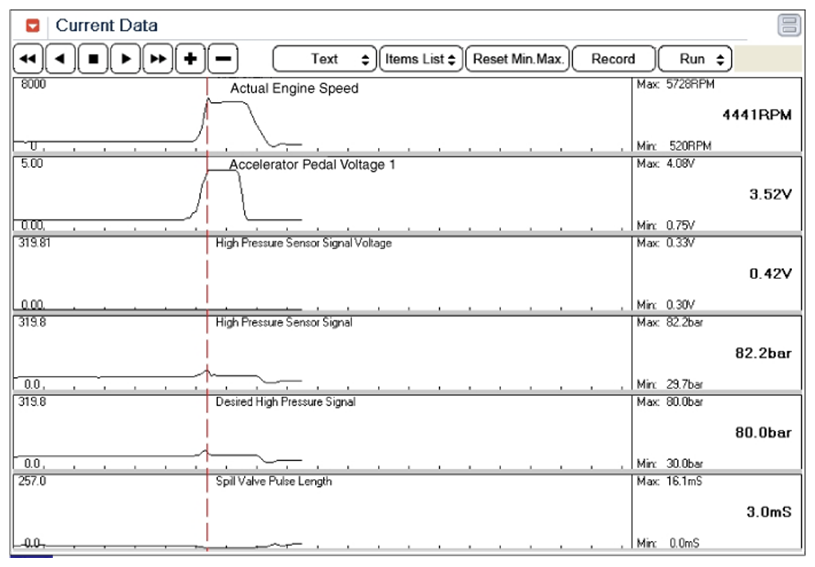

Fig 3: Screen Display - Normal Waveform Of Rail Pressure Sensor At Acceleration
G10373105Courtesy of HYUNDAI MOTOR AMERICA
