Signal Waveform & Data

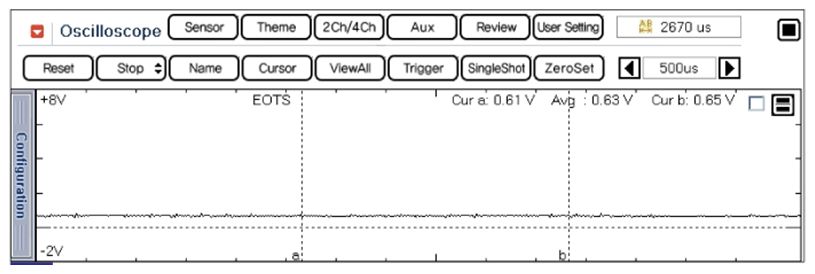

Fig 1: Screen Display - Normal Waveform Of EOTS At 76°C (168.4°F)
G10373129Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Screen Display - Normal Data Of IATS & ECTS & EOTS At IG ON
G10373130Courtesy of HYUNDAI MOTOR AMERICA
Fig 3: Screen Display - Normal Data Of IATS & ECTS & EOTS Engine At Operating Temperature
G10373131Courtesy of HYUNDAI MOTOR AMERICA
