Signal Waveform & Data

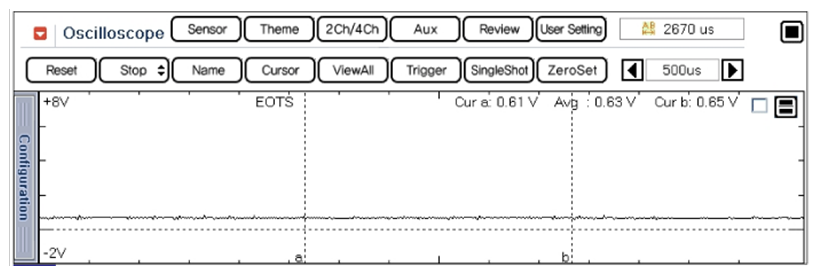

Fig 1: Screen Display - Normal Waveform Of EOTS At 76°C (168.4°F)
G10373137Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Screen Display - Normal Data Of IATS & ECTS & EOTS At IG ON
G10373138Courtesy of HYUNDAI MOTOR AMERICA
Fig 3: Screen Display - Normal Data Of IATS & ECTS & EOTS Engine At Operating Temperature
G10373139Courtesy of HYUNDAI MOTOR AMERICA
