Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. IG "ON".
  3. Select "DTC" button, and then Press "DTC Status" to check DTC's information from the DTCs menu.
  4. Read "DTC Status" parameter.

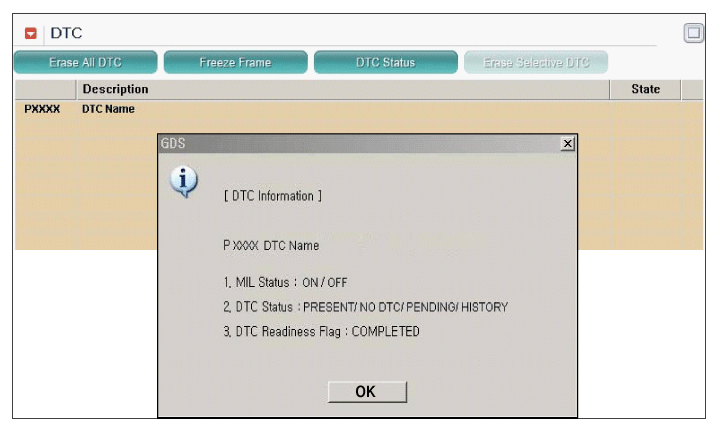

    Fig 1: Screen Display - DTC Information
    G10373527Courtesy of HYUNDAI MOTOR AMERICA
  5. Is parameter displayed "Present fault"?

    YES

    • Substitute with a known - good Catalyst Converter and check for proper operation. If the problem is corrected, Go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
