Power Circuit Inspection

■ Check Voltage

1. IG "OFF" and disconnect Cooling fan relay (low).
2. IG "ON".
3. Measure voltage between battery power supply terminals of Cooling fan relay (low) harness connector and chassis ground.

   Specification:  Approx. B+

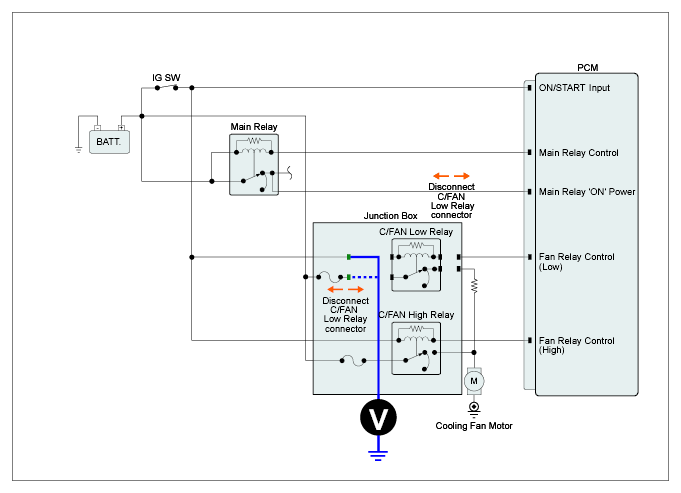

   Fig 1: Measuring Voltage Between Battery Power Supply Terminals Of Cooling Fan Relay (Low) Harness Connector And Chassis Ground

   Courtesy of HYUNDAI MOTOR AMERICA

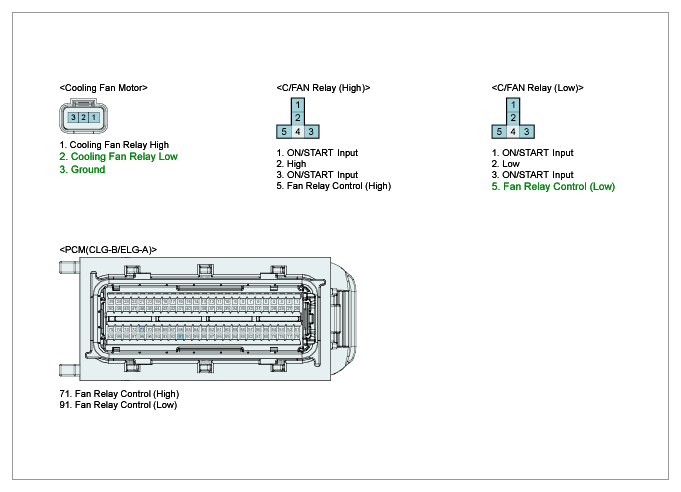

   Fig 2: Cooling Fan Relay Terminals (Low)

   Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured voltage within specification?

   YES

   • Go to "CONTROL CIRCUIT INSPECTION " procedure.

   NO

   • Check if cooling fan fusible link 30A is open or not installed.
   • Repair or replace as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
