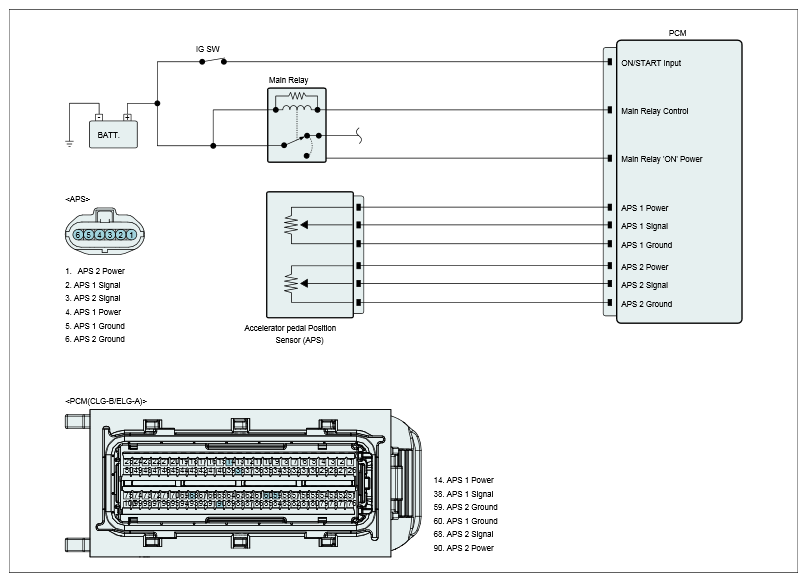

Home › Hyundai › 2016 › Azera Base › Repair and Diagnosis › Engine Performance › System › Engine Control System Diagnosis (3 Of 3) › DTC P2123: Accelerator Position Sensor 1 Signal Circuit High Input › General Information › Diagnostic Circuit Diagram
