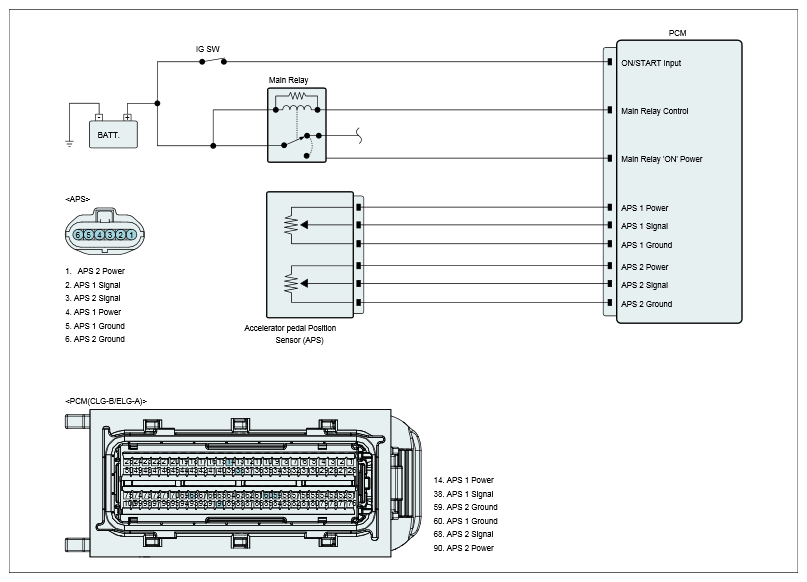

Home › Hyundai › 2016 › Azera Base › Repair and Diagnosis › Engine Performance › System › Engine Control System Diagnosis (3 Of 3) › DTC P2128: Accelerator Position Sensor 2 Signal Circuit-High Input › General Information › Diagnostic Circuit Diagram
