Home › Hyundai › 2016 › Azera Base › Repair and Diagnosis › Heating, Ventilation & A/C (HVAC) › HVAC Control Systems › Air Conditioning System › Compressor › Components and Components Location › Components

Components and Components Location: Components

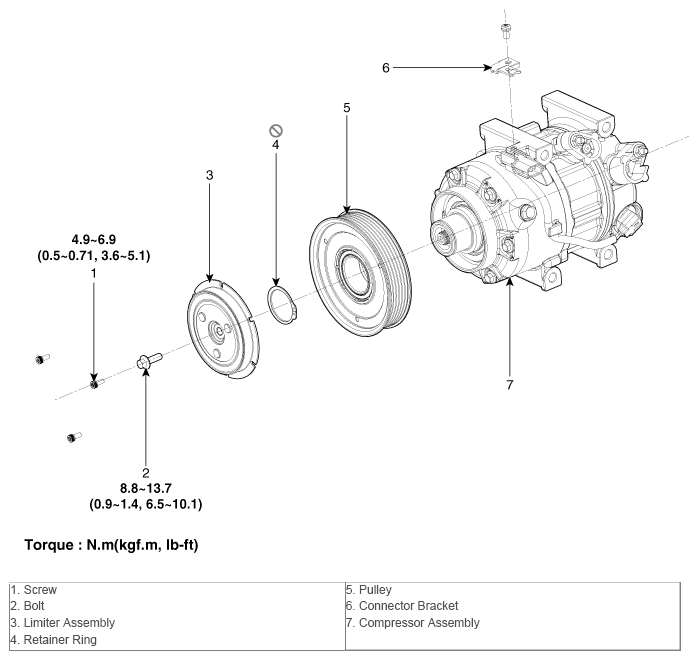

Fig 1: A/C Compressor Components With Torque Specifications
G10369767Courtesy of HYUNDAI MOTOR AMERICA
