Home › Hyundai › 2016 › Azera Base › Repair and Diagnosis › Heating, Ventilation & A/C (HVAC) › HVAC Control Systems › Heater System › Components and Components Location › Components

Components and Components Location: Components

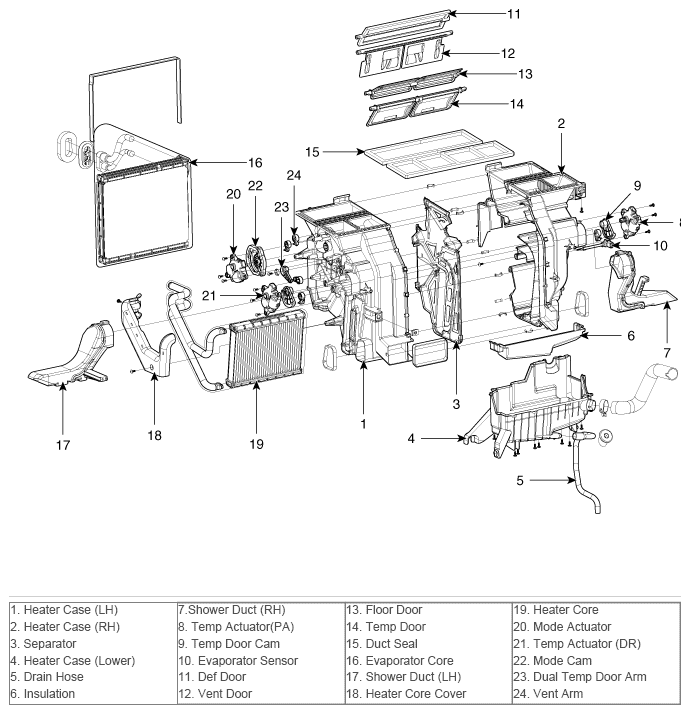

Fig 1: Heater System Components
G10369815Courtesy of HYUNDAI MOTOR AMERICA
