PCM Connector End View (CLG-B)

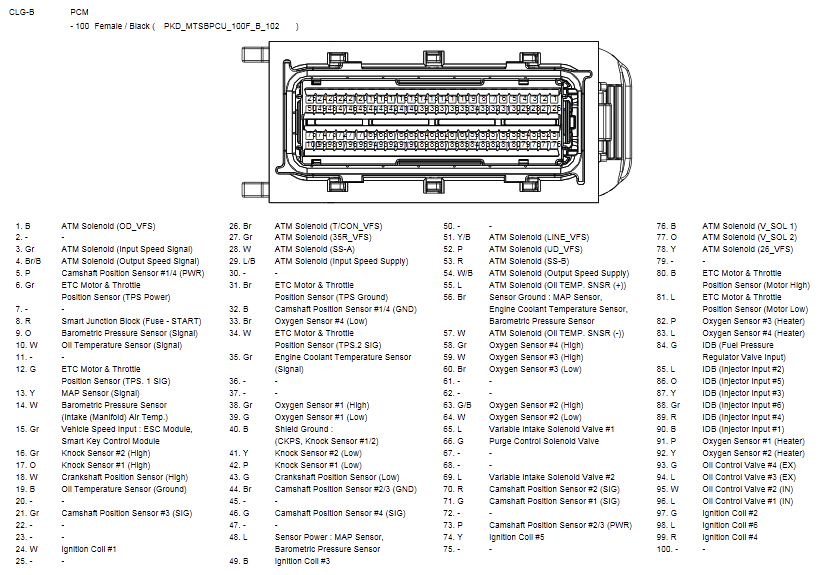

Fig 1: PCM Connector End View (CLG-B)
G10776256Courtesy of HYUNDAI MOTOR AMERICA
