Smart Junction Block Connector End View (I/P-A)

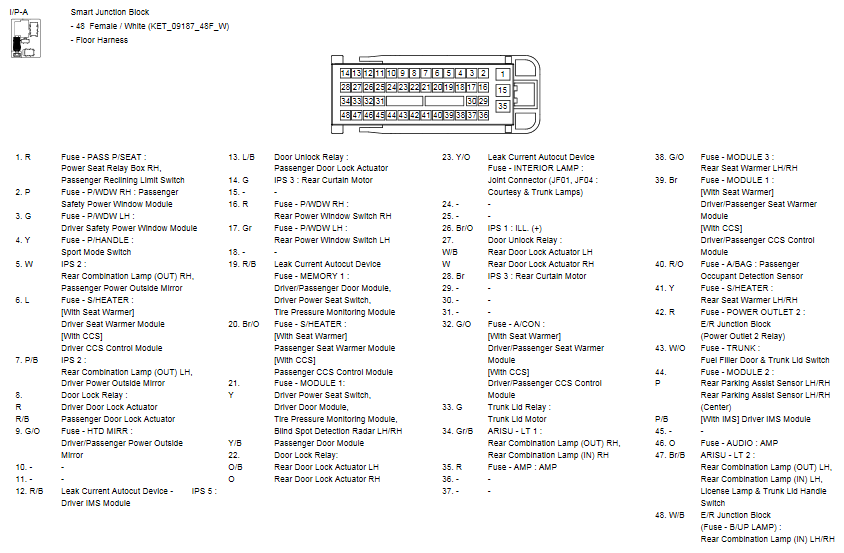

Fig 1: Smart Junction Block Connector End View (I/P-A)
G10776457Courtesy of HYUNDAI MOTOR AMERICA
