Smart Junction Block Connector End View (I/P-E)

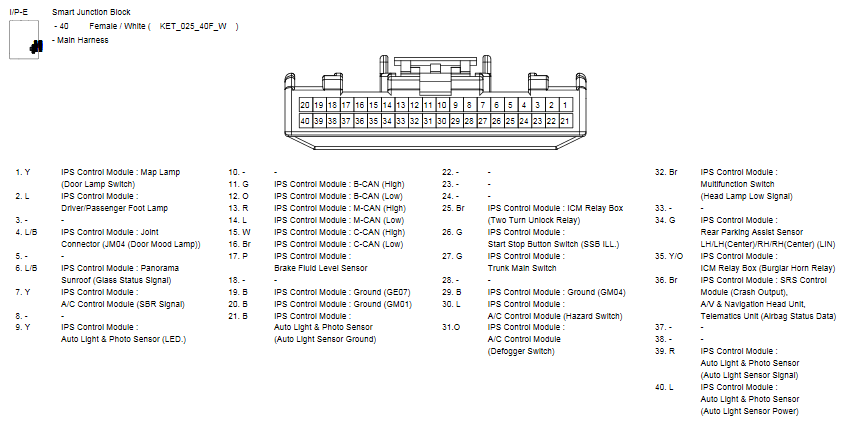

Fig 1: Smart Junction Block Connector End View (I/P-E)
G10776461Courtesy of HYUNDAI MOTOR AMERICA
