Home › Hyundai › 2016 › Azera Base › Repair and Diagnosis › Restraints › Passive Restraints › Restraints - General Information › Components and Components Location › Components

Components and Components Location: Components

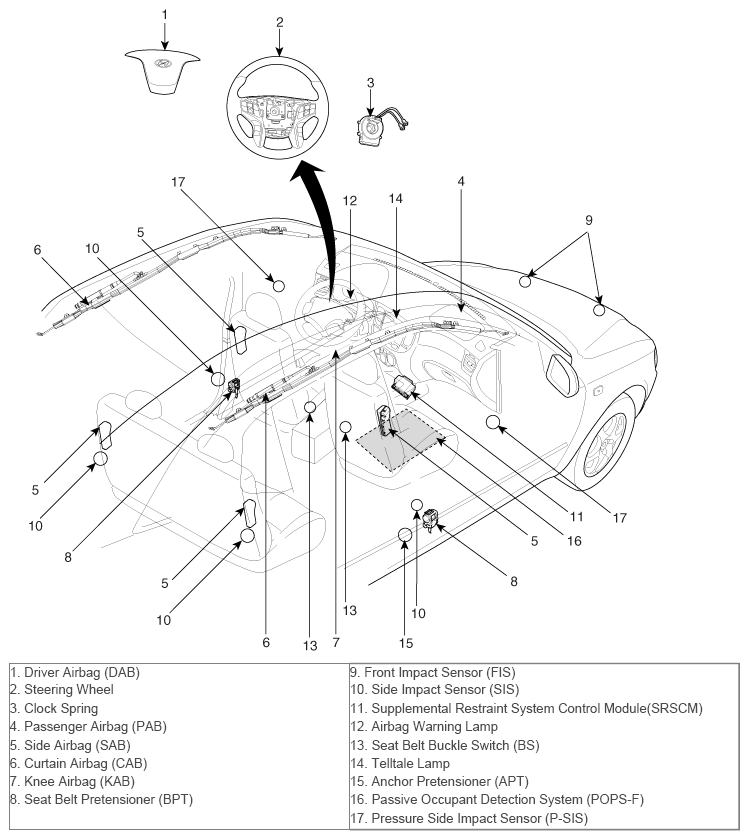

Fig 1: Airbag System Components And Locations
G10368028Courtesy of HYUNDAI MOTOR AMERICA
