Automatic Transaxle Control System
›
Transaxle Control Module (TCM)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

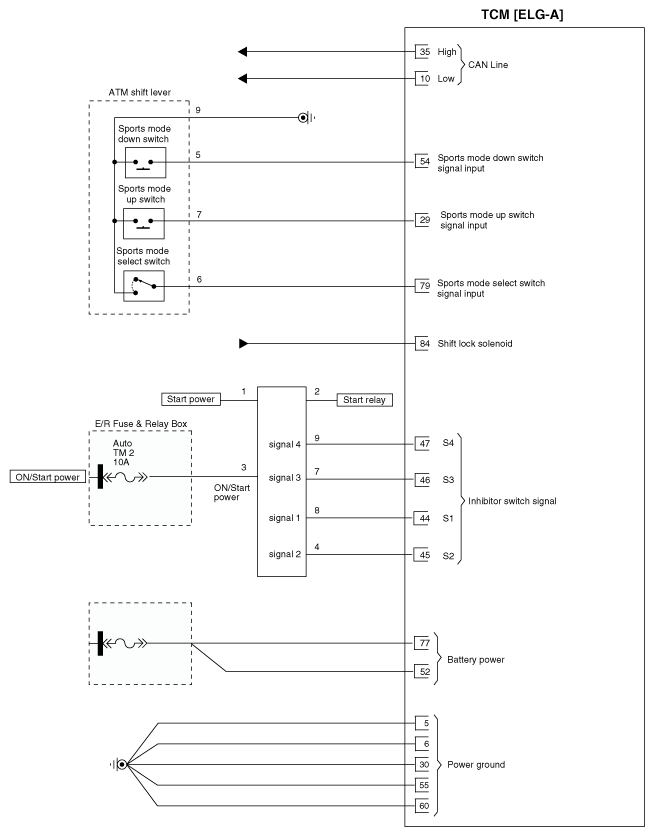

Fig 1: TCM - Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA

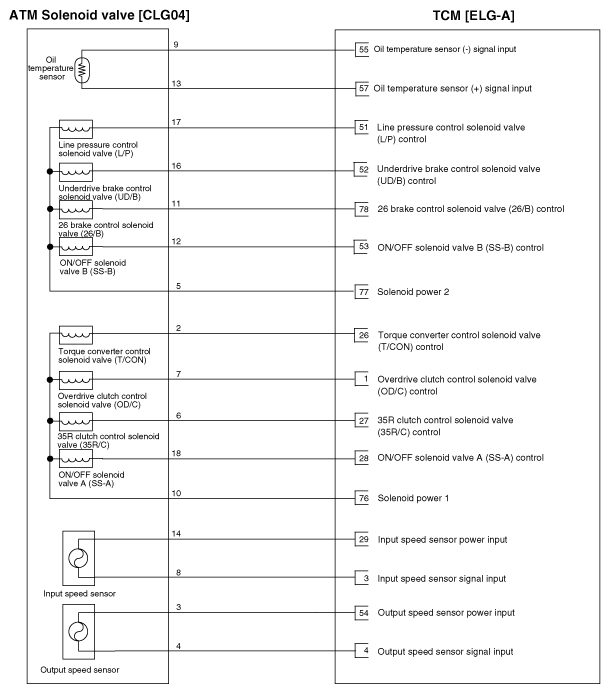

Fig 2: ATM Solenoid Valve - Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
