Components and Components Location: Components

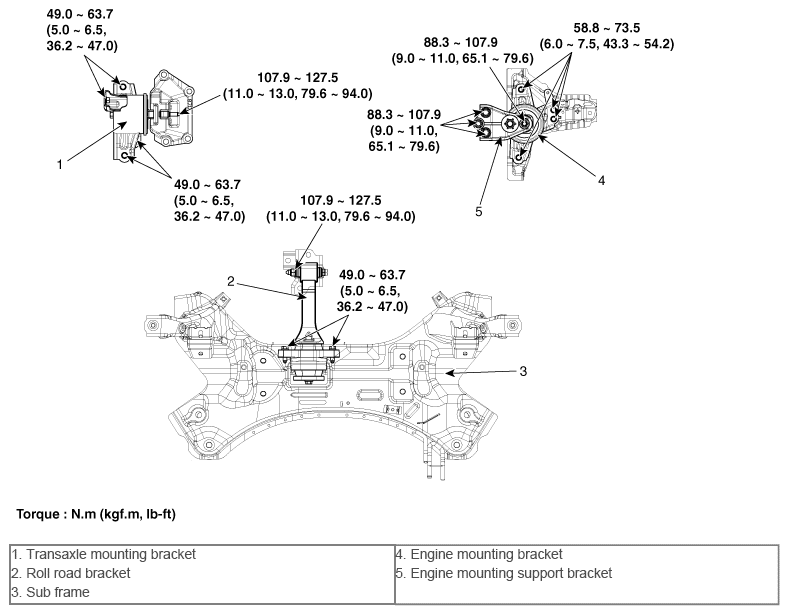

Fig 1: Engine Mounting Components With Torque Specifications
G10366848Courtesy of HYUNDAI MOTOR AMERICA
